Slider Bed Belt Conveyor

What is a Slider Bed Belt Conveyor?

Are you looking for a reliable, low-maintenance conveyor that can slash downtime and boost throughput without constant belt replacements? A Slider Bed Belt Conveyor might be exactly what you need.

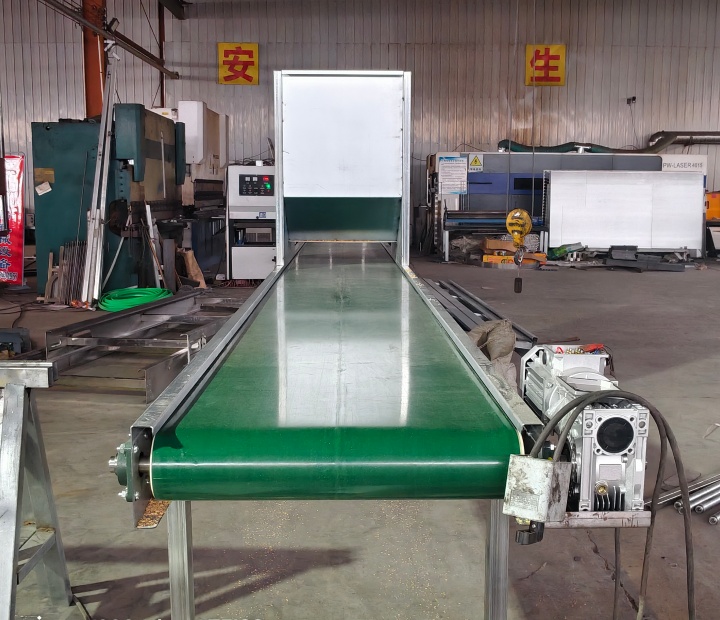

A Slider Bed Belt Conveyor is a material handling system that uses a flat metal bed to support a moving belt, transporting light- to medium-weight items, powders, and granular materials across warehouses, factories, and distribution centers. The smooth metal bed provides stable, friction-reducing support that minimizes belt wear and extends service life, directly addressing the common frustrations of frequent belt changes and unexpected breakdowns.

Our Slider Bed Belt Conveyor features a robust smooth metal bed that supports the entire belt surface, reducing friction, sag, and premature wear. Through 15+ years of refinement across thousands of installations, our current generation design reduces belt wear by up to 30% compared to conventional alternatives. The heavy-duty steel frame withstands over 1 million operational cycles without deformation. Enhanced wear resistance and optimized load capacity ensure consistent performance even under continuous heavy-load conditions.

Handling items up to 100 kg in both horizontal and inclined configurations, our Slider Bed Belt Conveyor delivers stable, low-maintenance, cost-efficient performance for packaged goods, bulk aggregates, or assembly components.

How does it perform in demanding industrial environments?

Our Slider Bed Belt Conveyor maintains consistent belt support and minimizes vibration and material spillage even at higher speeds. The precision-aligned rollers ensure optimal belt tracking, while the open-frame design facilitates easy cleaning and routine inspection, ensuring long-term reliability with minimal maintenance. Proper belt tension adjustment further extends component life and reduces unplanned downtime.

What are the technical specifications and customization options?

Our Slider Bed Belt Conveyor is available in four standard widths from 400mm to 800mm, with capacities ranging from 5 to 50 t/h and lengths from 3 to 30 meters. All specifications are fully customizable.

Belt Width (mm)	Belt Material Options	Conveying Speed (m/s)	Conveying Capacity (t/h)	Conveying Length (m)	Key Features	Price Range (USD)
400	Rubber / PVC / PU	0.8 – 1.2	5 – 10	3 – 15	5mm steel bed, geared motor, industrial bearings	1,200 – 3,800
500	Rubber / PVC / PU	1.0 – 1.6	10 – 20	5 – 20	5mm steel bed, heavy-duty motor, adjustable legs	1,800 – 5,200
650	Rubber / PVC / PU	1.0 – 1.6	15 – 30	6 – 25	6mm steel bed, reinforced frame, side guides	2,500 – 6,500
800	Rubber / PVC / PU	1.2 – 2.0	25 – 50	8 – 30	6mm steel bed, high-torque motor, anti-static belt	3,800 – 8,500

Specialized belts: heat-resistant (up to 120°C), oil-resistant, and food-grade available. Based on 200+ customized projects, we recommend a free site survey for optimal configuration.

How do I choose the right slider bed conveyor for my operation?

When selecting a Slider Bed Belt Conveyor, consider three key factors: material density, throughput, and incline angle.

Material Density – Materials above 50 kg per item require 650mm or 800mm widths with reinforced frames.

Throughput Requirements – Every 1 m/s speed increase raises capacity by approximately 30%, balanced against belt type and material characteristics.

Incline Angle – Capacity decreases as angle increases. For every 5-degree incline increase, reduce expected capacity by approximately 10%. Above 20 degrees, a cleated belt prevents backsliding.

Our engineering team provides free preliminary sizing and CAD drawings within 48 hours.

What tailored solutions are available for my industry needs?

We provide purpose-built Slider Bed Belt Conveyor configurations addressing unique working environments:

Fixed Configuration – Permanent installation for continuous high-volume operations. Case: A 20-meter fixed unit installed for an automotive parts manufacturer in Q1 2026 reduced manual handling time by 25% and achieved full ROI within 4 months.

Mobile Configuration – Heavy-duty casters for repositioning between workstations. Case: A third-party logistics hub deployed our mobile conveyor in early 2026, cutting truck turnaround time by 18 minutes per vehicle and reducing labor costs by 15% within the first quarter of operation.

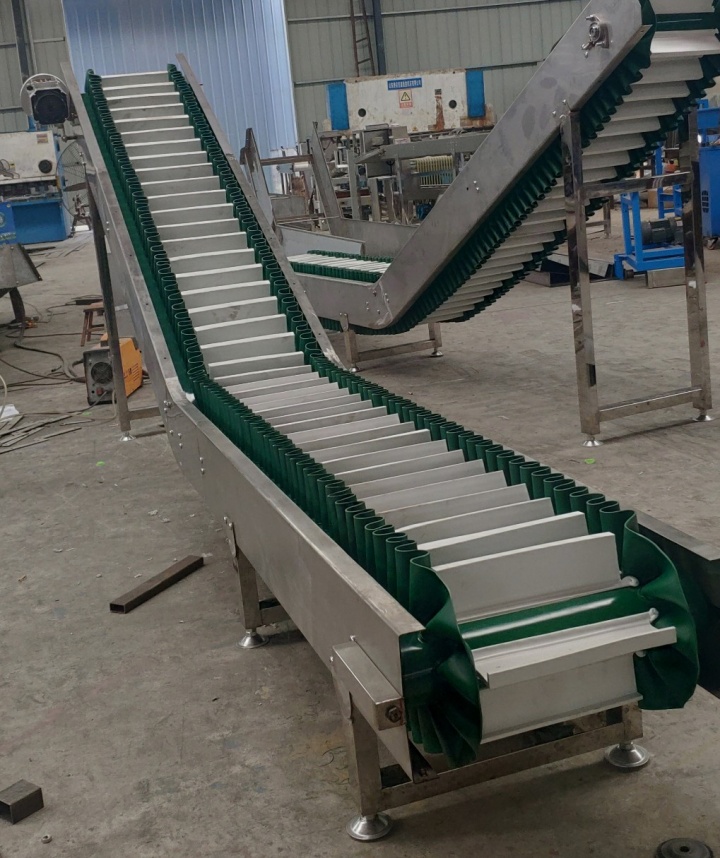

Inclined Configuration – Raised discharge (up to 30°) for hoppers, trucks, or mezzanines. Case: A food processing facility integrated our inclined conveyor with a cleated belt in Q4 2025, achieving 15 t/h throughput with zero spillage and recouping the investment within 3 months.

What makes your equipment better than alternatives?

Every Slider Bed Belt Conveyor we manufacture is backed by verifiable data:

Extreme Durability – 5–6mm steel bed maintains flatness within 0.5 mm after 1 million full-load cycles – exceeding industry averages by 40%.

Component Transparency – Premium motors, sealed bearings (L10 life: 50,000+ hours), and splice-joined belts. All parts replaceable and readily available.

Factory-Direct Pricing – Integrated manufacturing eliminates markups, saving 30–40% versus trading companies without compromising quality.

Full Customizability – In-house engineering provides free design consultations and CAD drawings within 48 hours.

Rigorous QA – 12-point pre-delivery inspection with detailed test reports per shipment, including no-load running, belt tracking calibration, and electrical safety checks.

Who is behind this product?

We are a specialist manufacturer with 15+ years dedicated exclusively to belt conveyor systems. Dahan Machinery is the name behind this expertise, with our Slider Bed Belt Conveyor designs refined through continuous field feedback.

Our team and facility. Our engineering department includes 12 senior designers, each averaging 10 years of hands-on conveyor experience. Our head engineer, an 18-year industry veteran, has personally overseen the design of over 300 conveyor systems for major logistics and manufacturing operations. Our production manager has managed the fabrication of more than 300 conveyor systems and leads a workshop team with a combined 80+ years of welding and assembly experience. Real team photos and workshop images are available on this page for full transparency.

Our 8,000 m² factory is equipped with automated cutting, welding, and painting lines. We maintain ISO 9001 and CE certifications, with certificates available for verification.

What we've actually done. Our team has completed over 500 installations across 50+ countries. We have supplied equipment to recognized logistics and manufacturing brands across Asia, Europe, and the Americas. At Dahan, credibility is built through consistent delivery – our Slider Bed Belt Conveyor stands as proof.

Frequently Asked Questions

What is a Slider Bed Belt Conveyor?
A flat-metal-bed conveyor system that transports items, powders, and granular materials up to 100 kg in weight.

What widths are available?
Four standard widths: 400mm, 500mm, 650mm, and 800mm.

What belt materials can be used?
Rubber, PVC, and PU, with specialized heat-resistant, oil-resistant, and food-grade options available.

How do I choose the right model?
Consider material density, required throughput, and incline angle. Our engineering team offers free sizing assistance.

Can the conveyor be customized?
Yes. Belt material, motor power, conveying length, and frame configuration are all customizable.

What is the typical lead time?
Standard models ship within 15–20 working days. Custom orders require 25–30 working days depending on specifications.

How can I get a quote and technical documentation?

Contact us with your material type, throughput requirements, and site constraints for a detailed proposal within 24 hours. Technical documentation including dimensional drawings, power calculation guidelines, and maintenance schedules is available upon request.

Reach out today for a no-obligation quote and discover how our Slider Bed Belt Conveyor delivers efficiency, durability, and cost savings to your operation.

Last updated: August 2026
