Soil Conveyor Belt
Portable & Mobile Solutions for Bulk Materials
Soil Conveyor Belt is a heavy-duty portable and mobile belt conveyor system specifically engineered for continuous handling of topsoil, dirt, sand, compost, and other bulk materials. Our mobile soil conveyors offer reliable performance across construction sites, agricultural fields, mining yards, and ports.
- Customizable lengths (5m to 15m) & over 8 model options
- Robust weight range (518 - 1490 kg) for heavy-duty industrial stability
- Ideal for short-distance bulk material transportation, loading, and unloading.
- Widely applied in construction sites, open-pit mines, farms, and storage docks.
How does a soil conveyor belt work?
The working principle of the soil conveyor belt relies on two end drums and a closed continuous loop belt. Driven by a high-efficiency motor and reducer, friction between the drive drum and the belt moves bulk soil and aggregates smoothly from the feeding end to the discharge end.
Watch the Dahan mobile soil conveyor belt operating outdoors, demonstrating its high-angle conveying capabilities for bulk materials.
The frame structure can be flexibly built using carbon steel, aluminum, or corrosion-resistant stainless steel. With adjustable speed controls and optional mobile pneumatic wheels, it ensures seamless handling of sticky topsoil, sand, and construction aggregates without material blockage.
Key advantages of Dahan soil conveyor belts
When handling topsoil, agricultural dirt, and bulk aggregates, industrial operations require robust equipment that balances efficiency with material protection. The mobile soil conveyor systems are meticulously designed to deliver superior operational performance across challenging field conditions. The core advantages include:
- Gentle Bulk Material Transport: Designed to prevent soil segregation, particle degradation, and excessive dust generation during transfer.
- Cost-Effective Investment: Low initial capital expenditure with high operational durability for continuous soil and aggregate handling.
- Energy-Efficient Operation: Engineered with optimized friction ratios and high-efficiency drives to minimize specific energy consumption.
- Low Maintenance & Easy Upkeep: Modular design allowing quick component inspection, belt replacement, and reduced operational downtime.
Technical specifications and parameter matrix
To assist engineers and project managers in selecting the optimal portable soil conveyor system, the following table outlines the standard technical parameters including belt widths, conveying lengths, matching motor power, operating speeds, and handling capacities:
|
Belt width (mm) |
Conveying length (m) Power (kW) |
Conveying speed (m/s) |
Conveying amount (t/h) |
||
| B400 | ≤10 | 12-15 | 15-30 | 1.25-2.0 | 30-60 |
| 3 | 3-4 | 4-7.5 | |||
| B500 | ≤10 | 12-15 | 15-30 | 1.25-2.0 | 40-80 |
| 3 | 4-5.5 | 5.5-7.5 | |||
| B650 | ≤10 | 12-15 | 15-30 | 1.25-2.0 | 80-120 |
| 4 | 7.5 | 7.5-11 | |||
| B800 | ≤10 | 12-15 | 15-30 | 1.25-2.0 | 120-200 |
| 4 | 7.5 | 7.5-15 | |||
| B1000 | ≤10 | 10-20 | 20-40 | 1.25-2.0 | 200-320 |
| 5.5 | 7.5-11 | 11-22 | |||
Soil conveyor belt options and structural configuration
Watch conveyor belt operation, structural tracking features, and adjustments in our facility.
Available Types: We provide light-duty belt conveyors, highly flexible mobile belt conveyors with wheels for site relocation, and fixed/immobile belt systems for stationary plant setups.
Core Structural Components: The system is comprehensively built with a sturdy roller support, an efficient belt cleaning system (scrapers), a reliable brake part for inclined operations, precision discharge parts, and heavy-duty mechanical accessories.
The Driving Assembly: Consists of a high-efficiency motor coupled with a high-speed coupling, heavy-duty reducer, and rigid welded section steel base for ultimate vibration resistance.

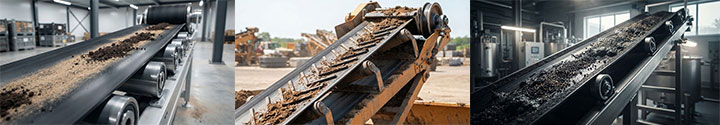

How to Choose the Right Belt Type for Different Soil Conditions
Different types of earthwork, agricultural soil, and construction aggregates demand specific belt textures and structural configurations to ensure maximum throughput and prevent material slippage:
- Flat Rubber Belts: Ideal for dry topsoil, sand, and general horizontal aggregate transfer where minimum friction and smooth transition are required.
- Chevron / Cleated Belts: Specifically engineered with raised V-shaped profiles to prevent wet, sticky clay and high-moisture compost from sliding backward during inclined transport (up to 35°).
- Oil- & Corrosion-Resistant Belts: Recommended for industrial sludge, chemically treated agricultural fertilizers, and harsh mining overburden applications.
Why Partner with Us for Your Soil Handling Projects?
Choosing the right manufacturing partner is crucial for the long-term reliability and efficiency of your bulk material processing lines. At Dahan Machinery, we combine decades of industrial fabrication experience with custom engineering capabilities to deliver robust, high-performance conveying solutions tailored precisely to your operational environment.
- 18 Years of Engineering Expertise: Tailored conveyor solutions specifically engineered for topsoil, construction dirt, sand, and bulk materials.
- Customized Structural Design: Advanced options including portable mobile frames, adjustable angles, and weather-resistant coatings.
- Strict Quality Control: Every portable soil conveyor undergoes rigorous belt tracking, load testing, and trial runs before factory dispatch.
- Global Engineering Support: Full layout design support, technical guidance, and fast-response spare parts availability within 24 hours.
* Need customized engineering parameters or CAD drawings for your plant layout? Contact our technical team today.
Main application industries of soil conveyor belts
Our portable and mobile soil conveyor belts are widely utilized across various industrial sectors requiring efficient, short-distance bulk material transfer, including:
- Ports & Wharves: For rapid loading and unloading of bulk soil, sand, and aggregates from vessels.

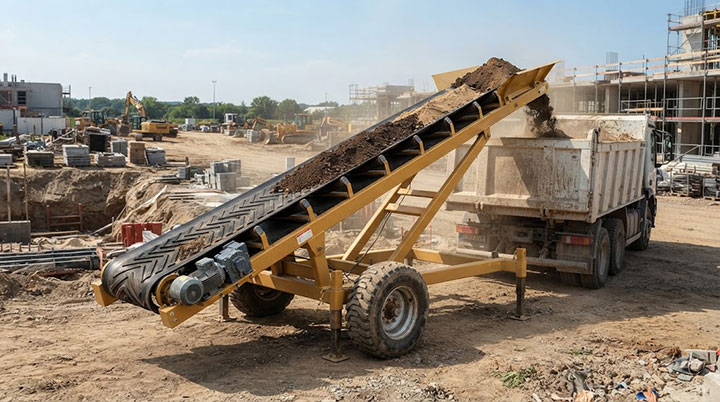

- Construction & Infrastructure Sites: Transporting topsoil, excavation dirt, and building materials across job sites.
- Agriculture & Composting Facilities: Moving organic soil, fertilizers, and bulk grains efficiently.
- Mining & Coal Yards: Handling overburden, soil stripping, and mineral aggregates with high reliability.
- Warehouses & Logistics Hubs: Streamlining general bulk material handling and temporary stockpiling.
Real-world application case study
To demonstrate the field reliability and structural performance of our equipment in heavy-duty material handling, you can review one of our recent successful overseas delivery projects:
Folding Belt Conveyor for Sand & Soil Loading →
We recently manufactured and exported a specialized folding mobile conveyor system designed for high-efficiency sand and bulk soil loading. Featuring an adjustable angle, robust rubber belt, and heavy-duty structural steel frame, this unit significantly reduced material handling time and operational labor costs at the client's site.
Key Metrics: Custom length configuration | High mobility | Direct factory testing prior to shipment.
Watch Dahan Mobile Soil Conveyor in Action
See our portable mobile soil conveyor testing and running live in our factory before overseas shipment:
Watch the Dahan mobile soil conveyor belt running and testing prior to factory dispatch.
Frequently Asked Questions (FAQ) about Soil Conveyor Belts
Have questions regarding our mobile soil conveyors? Here are answers to the most common inquiries from our international engineering and procurement clients:
Q1: Can this portable soil conveyor handle wet, sticky topsoil or compost without clogging?
A: Yes. Our soil conveyors are equipped with adjustable scraper/cleaning systems and can be configured with chevron or specialized textured rubber belts designed specifically to prevent wet clay, compost, and moist soil from sticking or slipping.
Q2: Is the conveying height and angle adjustable for different site operations?
A: Yes, our mobile units feature mechanical or winch-operated lifting mechanisms, allowing operators to easily adjust the incline angle (typically between 0° and 35°) to accommodate various truck loading and stockpiling heights.
Q3: What electrical power supply options are available for overseas industrial sites?
A: We support full electrical customization. Standard motors are built for 380V/50Hz/3Phase, but we can customize voltages according to your local industrial standards (such as 220V, 415V, 480V at 50Hz/60Hz) with IP55 waterproof protection.
Q4: What is the standard production and delivery lead time for export orders?
A: Standard portable soil conveyor models are typically manufactured and ready for shipment within 10 to 15 working days. Customized lengths or special electrical requirements may take 20 to 25 days.
Ready to Optimize Your Soil Handling Line?
Whether you need standard technical specifications, customized mobile soil conveyor lengths, or formal CAD plant layout drawings, our engineering team is ready to assist you within 24 hours.
