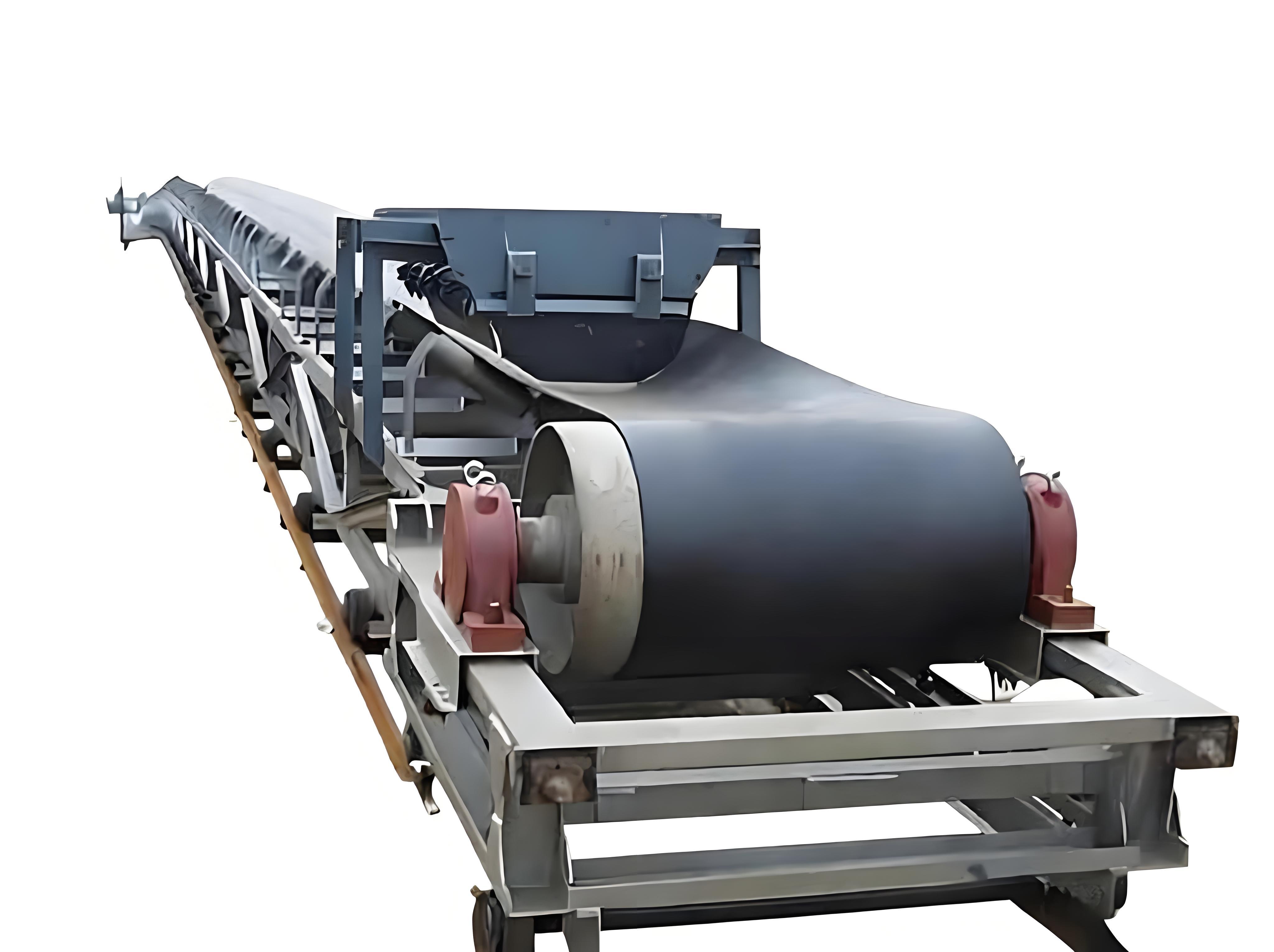

Industrial Belt Conveyor Systems

An advanced industrial belt conveyor system can move continuously or intermittently to convey items below 100KG or powdery and granular items. It can be conveyed up and downhill, with strong conveying capacity, up to 3000 tons/hour, long conveying distance, high-speed, stable operation, low noise, and easy maintenance. Our belt conveyor solutions are engineered for line program control and automatic operation, widely used in heavy manufacturing, assembly line distribution, and bulk material warehousing.

Features and Benefits

Our industrial belt conveyor systems offer exceptional performance across diverse industrial environments. Key features and advantages include:

• Wide Material Adaptability: Handles powder, granular, small block low-abrasive materials, and bagged items efficiently.
• High Conveying Capacity: Delivers between 30 and 3000 tons/hour with a maximum conveyable length reaching 203 meters.
• Flexible Integration: Works seamlessly as a single industrial belt conveyor or integrates with other equipment for multi-point loading and unloading.
• Customized Structural Options: Appropriate belt materials can be customized, with optional skirts and reinforcing ribs added upon request.
• Reliable & Cost-Effective: Engineered for high safety, stable operation, and low daily maintenance costs.

How Industrial Belt Conveyors Work

An industrial belt conveyor relies on the conveyor belt acting simultaneously as the load-bearing member and traction member. Supported by upper and lower idlers, the endless belt loops continuously around the head and tail pulleys. Power is transmitted through friction generated between the drive roller and the belt to achieve efficient, continuous material transportation. This versatile system supports horizontal conveying, as well as upward and downward inclined transportation.

Technical Parameters

Our industrial belt conveyor systems can be tailored to various plant capacities and layouts. Below are the standard technical specifications and parameter configurations:

Belt Width (mm)	Conveying Length (m) & Power (kW)			Belt Speed (m/s)	Conveying Capacity (t/h)
400	≤10 3	12-15 3-4	15-30 4-7.5	1.25-2.0	30-60
500	≤10 3	12-15 4-5.5	15-30 5.5-7.5	1.25-2.0	40-80
650	≤10 4	12-15 7.5	15-30 7.5-11	1.25-2.0	80-120
800	≤10 4	12-15 7.5	15-30 7.5-15	1.25-2.0	120-200
1000	≤10 5.5	10-20 7.5-11	20-40 11-22	1.25-2.0	200-320
1200	≤10 7.5	10-20 7.5-15	20-40 15-30	1.25-2.0	290-480
1400	≤10 11	10-20 15-22	20-40 22-45	1.25-2.0	400-680
1600	≤10 15	10-20 22-30	20-50 30-75	1.25-2.0	600-1080
1800	≤10 18.5	10-20 30-45	20-50 45-110	1.0-2.0	800-1500
2000	≤10 22	10-20 45-55	20-50 55-132	1.0-2.0	1000-2000
2400	≤10 30	10-20 55-75	20-50 75-185	1.0-2.0	1500-3000

Structural Composition of Industrial Belt Conveyors

An industrial belt conveyor is systematically engineered from several robust components, including the driving unit, roller assembly, idlers, cleaning system, unloading mechanism, braking unit, and protective accessories.

Driving part: Composed of an electric motor installed on a heavy-duty steel-welded base, high-speed coupling, reducer, and reduction coupling. Available in both left-mounted and right-mounted configurations. Our systems can also be equipped with oil-cooled electric drums ranging from 1.5 kW to 13 kW with speeds of 0.80, 1.0, and 1.25 m/s.

Rolling part: Divided into two primary categories: driving rollers (pulleys) and redirecting rollers to ensure smooth belt looping.

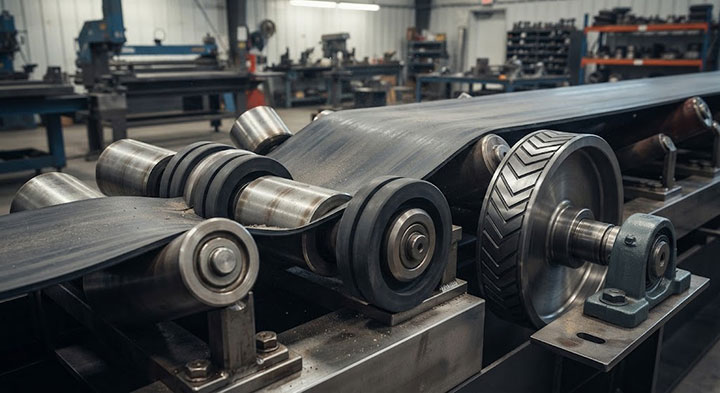

Idler part: Includes various configurations such as slotted, parallel, self-aligning, and buffer idlers to properly support the belt and materials.

Cleaning part: Equipped with professional conveyor belt scrapers and empty-section cleaners to efficiently clear residual material and prevent buildup.

Unloading part: Includes fixed plough unloaders and electric unloaders for flexible material discharge.

Braking part: Features reliable belt backstops and roller backstops to prevent reverse slippage on inclined operations.

Accessories: Enclosures, protective covers, guide troughs, and funnels to optimize dust control and safety.

Optional Accessories & Upgrades

To maximize the efficiency and safety of your industrial belt conveyor system, we offer a comprehensive range of high-quality upgrade accessories:

• Dust Covers & Enclosures: Fully sealed housing options to prevent dust leakage and protect materials from outdoor weather conditions.
• Automatic Belt Tracking Systems: Smart alignment sensors and self-aligning idlers to prevent belt deviation during high-speed operation.
• Impact Beds & Buffer Idlers: Installed at loading points to absorb the heavy shock load of large chunks or abrasive materials.
• Heavy-Duty Drive Drums: Oil-cooled and motorized pulley drums for compact and reliable power transmission.

Applications of Industrial Belt Conveyors

Our industrial belt conveyor systems are widely deployed across grain processing, coal mining, chemical engineering, building materials, metallurgy, electric power, light industry, ports, and shipping sectors. They excel at transporting bulk materials or packaged goods such as coal, gravel, sand, cement, fertilizer, and grain.

(Note: Standard systems handle materials under 60°C. For special requirements involving high temperatures, acids, alkalis, oils, or organic solvents, customized corrosion-resistant and heat-resistant conveyor belts are available upon request.)

Customer Site & Plant Operations

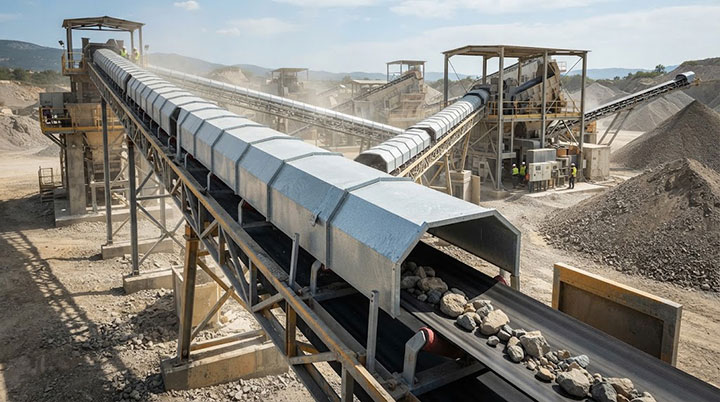

On-Site Case Study: The image above illustrates our heavy-duty industrial belt conveyor operating smoothly in a large-scale bulk material handling facility. Engineered for continuous 24/7 operation, this custom-configured system efficiently transports abrasive minerals across a long distance with minimal maintenance downtime, showcasing our capability to handle demanding industrial environments.
