Small Belt Conveyor

Product Overview

A small belt conveyor is a compact conveying system designed for efficient horizontal and inclined transportation of lightweight materials, small parts, and packaged goods in space‑constrained production environments. Engineered for loads up to 54 kg, the small belt conveyor integrates seamlessly into existing lines without costly factory expansions.

This small belt conveyor is available in two series. The standard series offers belt widths from 44 mm to 610 mm and lengths up to 7,315 mm, with load capacities up to 54 kg. The miniature series features a 75 mm frame height and belt widths starting at 44 mm, designed for ultra‑tight installations where standard conveyors cannot fit.

What Sets This Small Belt Conveyor Apart

• Ultra‑low profile — 75 mm frame height fits under overhead equipment and between closely spaced machinery
• Small‑part capability — 47 mm drive pulley and 25 mm idler pulleys handle parts as small as 5 mm

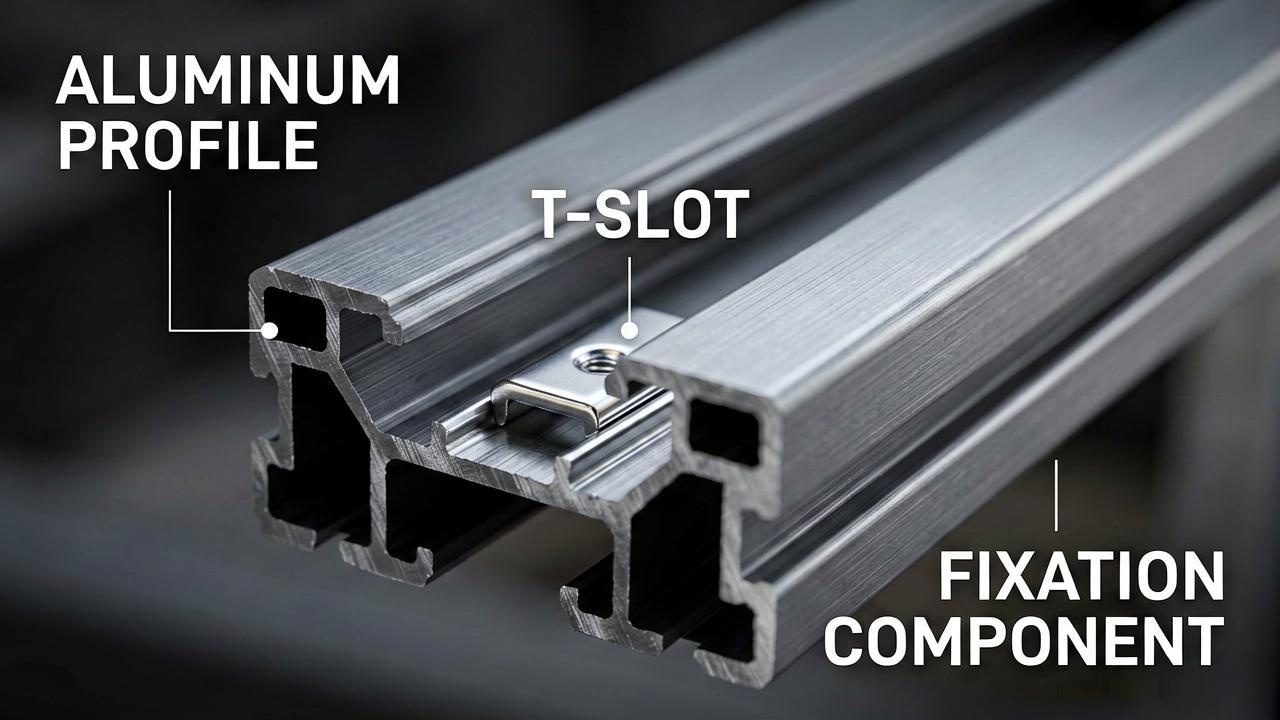

• Universal T‑slot mounting — Quick attachment of sensors, guides, and automation components without drilling
• Reversible operation — Bidirectional drive for flexible production workflows
• Multiple drive options — End drive, center drive, and modular drive configurations
• Maintenance‑friendly — Low belt tension design and fast belt changes without special tools.

This design philosophy centers on delivering maximum conveying capability in minimum physical space, without compromising reliability or ease of maintenance.

Key Features

• 75 mm ultra‑compact frame height;
• Belt widths: 44 mm – 610 mm (1.75″ – 24″);
• Belt materials: rubber, PVC, PU, silicone;
• Frame materials: aluminum, carbon steel, stainless steel;
• Reversible drive operation;
• Universal T‑slot mounting;
• Class 100 cleanroom‑certified options;
• CE‑certified models available.

Technical Specifications

Parameter	Standard Range
Belt Width	44 mm – 610 mm (1.75″ – 24″)
Conveying Length	457 mm – 7,315 mm (1.5′ – 24′)
Load Capacity	Up to 54 kg (120 lbs)
Belt Speed	Up to 122 m/min (400 ft/min)
Frame Height	As low as 75 mm (2.95″)
Pulley Diameter	Drive: 47 mm / Idler: 25 mm
Belt Materials	Rubber, PVC, PU, Silicone
Frame Materials	Aluminum Alloy, Carbon Steel, Stainless Steel
Drive Options	End Drive, Center Drive, Modular Drive
Certification	CE models; Class 100 cleanroom certified options

Need help selecting the right configuration for your application? Contact our engineering team for expert guidance.

Applications

• Electronics Assembly — Anti‑static options and low vibration for delicate circuit boards and sensors.
• Medical & Pharmaceutical — Class 100 cleanroom configurations for medical devices and pill packaging. This small belt conveyor ensures gentle handling without product damage.
• Food Processing — FDA‑compliant belting (PVC, PU, silicone) and stainless steel frame options.
• Logistics & Warehousing — Small part transfers, accumulation, and package handling in narrow aisles.
• Automated Assembly — T‑slot mounting for sensors and robotic integration.
• Packaging Lines — Product infeed, labeling, and quality control inspection.

Have a specific application requirement? Discuss your needs with our engineering team.

Quality Assurance & Support

• Comprehensive technical documentation and dimensional drawings;
• Rigorous factory testing before shipment;
• CE‑certified and Class 100 cleanroom‑certified options;
• FDA‑compliant belting for food contact applications;
• Engineering support for custom dimensions and configurations.

Frequently Asked Questions

Q: What is the difference between the standard series and the miniature series?

A: The standard series offers belt widths up to 610 mm (24″) and load capacities up to 54 kg (120 lbs) for general industrial applications such as logistics, packaging, and automated assembly. The miniature series features a 75 mm (2.95″) frame height and is specifically designed for ultra‑tight spaces where standard conveyors cannot fit, with belt widths starting at 44 mm (1.75″) and load capacities up to 6.8 kg (15 lbs), making it ideal for electronics assembly, medical device handling, and laboratory automation.

Q: What width and length options are available for this small belt conveyor?

A: Standard belt widths range from 44 mm to 610 mm (1.75″ to 24″), with standard lengths from 457 mm to 7,315 mm (1.5′ to 24′). Custom dimensions can be engineered for specific space requirements and application needs.

Q: How do I choose the right belt material for my application?

A: Belt material selection depends on product type and operating environment. Rubber belts are suitable for general industrial use with moderate grip requirements. PVC belts offer good abrasion resistance and are commonly used in packaging and logistics. PU belts provide excellent oil resistance and are ideal for applications involving grease or lubricants. Silicone belts are suitable for high‑temperature environments up to 200°C and food contact applications.

Q: What is the maximum load capacity for this small belt conveyor?

A: The standard load capacity is up to 54 kg (120 lbs). Customized solutions are available for applications requiring higher load capacities. Please consult with our engineering team for specific load requirements.

Q: Is this small belt conveyor suitable for cleanroom environments?

A: Yes. Class 100 cleanroom‑certified configurations are available, making them suitable for medical, pharmaceutical, and life science applications. These configurations feature sealed drives and easy‑to‑clean surfaces.

Q: Can this small belt conveyor be customized for specific applications?

A: Yes. Custom dimensions, belt materials, frame materials (aluminum, carbon steel, stainless steel), drive configurations, and mounting options can be engineered to meet specific application requirements. Motors can be mounted on either side, and specialized belting options are available for food contact, high‑temperature, and anti‑static applications.

Q: What is the lead time and warranty for this small belt conveyor?

A: Standard configurations are typically available with short lead times. Custom‑engineered solutions may require additional time based on specifications. All conveyors come with a comprehensive warranty covering manufacturing defects, with technical support available for installation and troubleshooting.

Q: What maintenance does this small belt conveyor require?

A: Routine maintenance includes periodic belt tracking adjustment and cleaning. The low belt tension design virtually eliminates belt stretch, reducing maintenance frequency. The modular frame construction allows fast belt changes without special tools, minimizing downtime.

Need a small belt conveyor for your specific application? Contact our engineering team to discuss your requirements and receive configuration guidance.
