Belt conveyor suppliers

Choosing a suitable belt conveyor suppliers is crucial for your project because it is directly related to the performance, reliability, maintenance cost and overall operational efficiency of the equipment. There are many well-known belt conveyor suppliers in the world, providing conveying equipment and components for different types and application scenarios. Xinxiang Dahan Vibration Machinery Co., Ltd. is a strong belt conveyor supplier. The following is a detailed introduction about it:

Related Overview

Establishment time: 2008

Factory area: 10,000 square meters.

Certification: Successively obtained ISO international quality system certification and EU CE certification.

Business model: direct sales enterprise, no middlemen to make a profit, all the projects undertaken are independently constructed by the company, without subcontracting.

Production capacity: With a plant area of ​​10,000+ square meters, the products are exported to Germany, Russia, Poland and other countries, serving the food, chemical, metallurgy and other industries, with 10,000+ cooperative customers.

Product categories

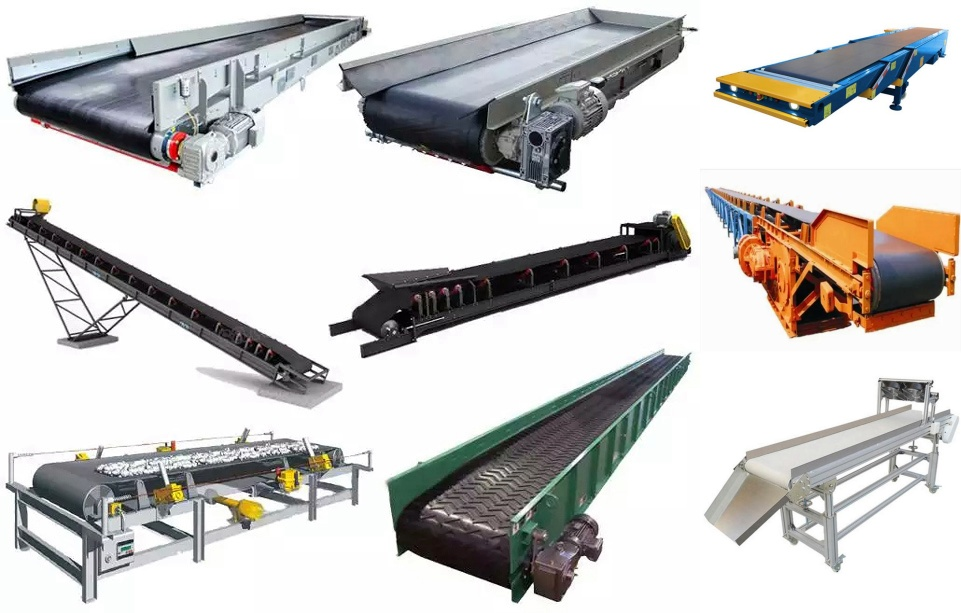

Dahan Machinery provides various types of belt conveyors, common models include:

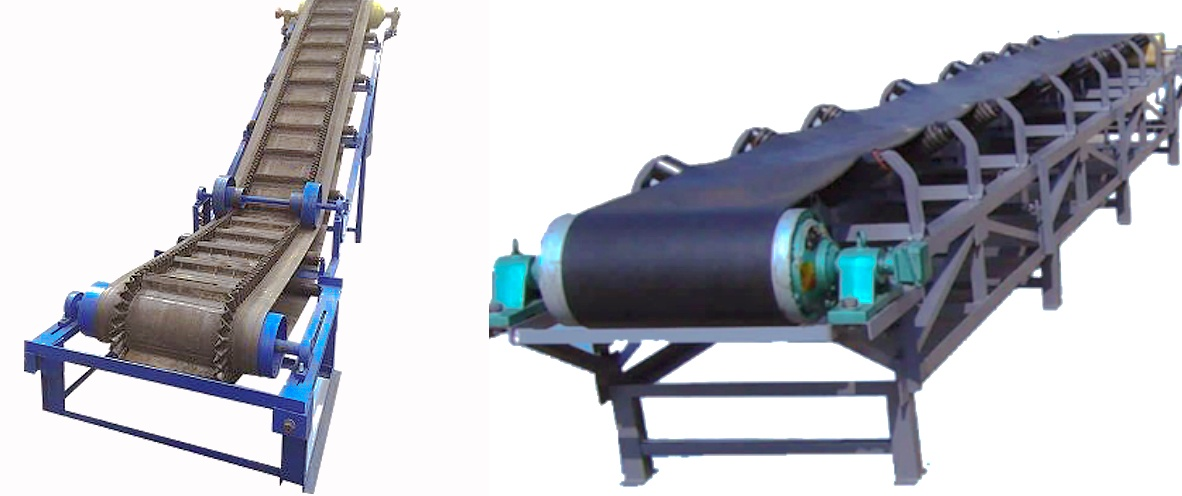

① TD belt conveyor: also called belt conveyor, belt conveyor, can be widely used in metallurgy, mining, coal, ports and other departments, to transport various loose materials or finished items with a loose density of 500-2500kg/m³ at room temperature.

Bandwidth: 500mm, 650mm, 800mm, 1000mm, 1200mm, 1400mm, etc.

Conveying speed: 0.8m/s-2.5m/s

Conveying capacity: According to the bandwidth and speed, the maximum can reach 600t/h (such as 1400mm bandwidth, 2.5m/s speed)

Conveying length: conventional ≤400m, can be customized for longer distances

Inclination: ≤18° (horizontal or small inclination conveying)

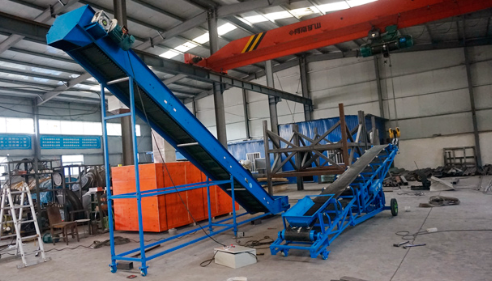

②DY movable belt conveyor: good mobility, mainly used in places where loading and unloading locations are frequently changed, such as ports, docks, stations, etc., for short-distance transportation and loading and unloading of bulk materials or finished items with a single weight of less than 100 kg.

Bandwidth: 500mm-800mm.

Conveying speed: 0.5m/s-1.5m/s (lower speed in mobile scenarios)

Conveying capacity: ≤100t/h (lightweight design)

Conveying length: 5m-30m (retractable or foldable)

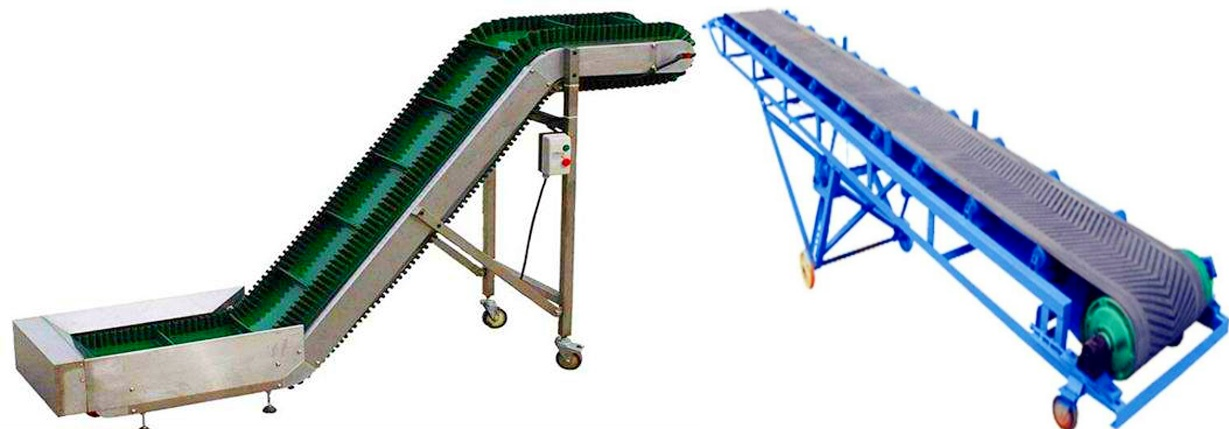

③DJ type high-angle belt conveyor: also known as sidewall belt conveyor, it uses the skirt sidewall baffle on the conveyor belt and adds a redirecting roller to make an angle of 50-90 degrees. It has the characteristics of large capacity and strong versatility, which can save a lot of equipment floor space.

Bandwidth: 400mm-1200mm

Conveying speed: 0.6m/s-2m/s (to prevent materials from slipping)

Conveying capacity: up to 2500m³/h (such as 1200mm bandwidth, 2m/s speed)

Lifting height: ≤200m (vertical lifting through sidewalls and diaphragms)

Inclination: 15°-90° (adjusted according to skirt height)

④Mining belt conveyor: suitable for harsh environments such as mines, conveying coal, ore and other materials, with strong conveying capacity and solid structure, can be used in conjunction with other conveying systems according to the requirements of the working environment.

Bandwidth: 650mm-1600mm

Conveying speed: 1m/s-3.15m/s (explosion-proof type must comply with coal mine safety standards)

Conveying capacity: ≤2000t/h

Special configuration: flame-retardant conveyor belt, explosion-proof motor, tear-proof sensor

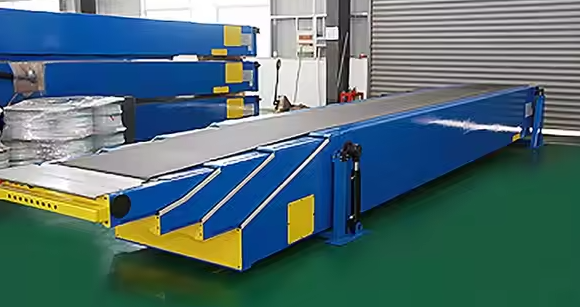

⑤Retractable belt conveyor: It can be retracted according to actual needs, and the conveying length can be adjusted within a certain range. It is suitable for different working scenes and process flows, and is often used for material transportation in coal mines, ports and other places.

Function: Bidirectional operation, retractable length (two-section, three-section, four-section), supports fixed speed/variable speed and one-way/two-way transportation.

Parameters: Conveyor belt width 500-1200mm, speed ≤30 meters/minute, load capacity 70 kg/meter, can be operated 10 meters deep in the carriage.

Advantages: The hydraulic lifting device supports height adjustment (2-4 meters), solves the problem of heavy goods stacking, and the loading and unloading efficiency reaches 30 pieces/minute.

Model parameters of belt conveyor

The following is a table of common belt conveyor models and their main technical parameters for reference (based on TD75 and DTII series, combined with the actual product conditions of suppliers such as Dahan Machinery):

Model	Belt width B (mm)	Conveying length L (m)	Conveying capacity Q (t/h)	Belt speed v (m/s)	Motor power (kW)	Inclination range (°)
DHB-400	400	3–20	40–80	0.8–1.6	1.5–5.5	0–20
DHB-500	500	5–30	80–150	0.8–2.0	2.2– 7.5	0–20
DHB-650	650	5–40	130–280	0.8–2.5	3–11	0–20
DHB-800	800	10–50	300–500	1.0–3.15	4–15	0–18
DHB-1000	1000	15–80	500–800	1.25–3.15	5.5–22	0–15
DHB-1200	1200	20–100	800–1000+	1.6–3.5	7.5–30	0–15

Why choose Dahan Machinery?

Extremely fast response mechanism: Exclusive customer service will respond quickly within 30 minutes, shortening the demand feedback cycle and ensuring zero delay in service response.

Full-process survey and design: Professional engineers will come to the site for free survey within 24 hours, and provide customized conveying solution design based on the working environment and process requirements

Efficient fault handling: The technical team will arrive at the site within 72 hours to repair equipment failures, reduce downtime losses through standardized maintenance processes, and ensure continuous operation of the production line

Personalized customized services: Relying on a professional technical team, we provide full-process customized services from solution design to equipment manufacturing based on material characteristics, conveying volume requirements and site layout.

Strong conveying capacity: The conveying capacity can be adjusted according to bandwidth and conveying speed to meet the needs of long-distance and large-volume material conveying. For example, the conveying volume of a large-angle belt conveyor can reach 2500m³/h and the vertical lifting height can reach 200m.

Dahan Vibration Machinery Co., Ltd. has formed differentiated competitiveness in the field of belt conveyors with its technological accumulation, product diversity and global service network. With its high efficiency, energy saving and flexibility, it is widely used in logistics, mining, chemical and other industries, and is a supplier choice with both cost-effectiveness and reliability.
