Small Portable Conveyor Belt for Grain

Used for transporting grain horizontally or at an angle from one place to another, it is commonly used for grain loading, unloading, and transshipment.

Conveyor belt width: 300–800 mm

Conveying length: 2–15 m

Conveying capacity: 2–60 t/h

Conveying speed: 0.3–2.0 m/s

Motor power: 0.75–5.5 kW

What is a Small Portable Conveyor Belt for Grain?

A Small Portable Conveyor Belt for Grain is a small, mobile conveyor used for continuous conveying, loading, unloading, and storage of bulk grains. It uses a belt conveyor system, with drive rollers propelling the conveyor belt to stably transport grains such as wheat, corn, and rice from the feed end to the designated location. The machine is lightweight, can be moved by one person, yet boasts a conveying capacity of 30-80 tons per hour. Conveying lengths range from 1-30 meters, and belt widths are selectable from 400mm to 800mm. It supports horizontal and inclined conveying, as well as height adjustment, allowing for flexible layout based on site space. This automates grain conveying, improves operational efficiency, and reduces labor input.

What are the advantages of a Small Portable Conveyor Belt for Grain?

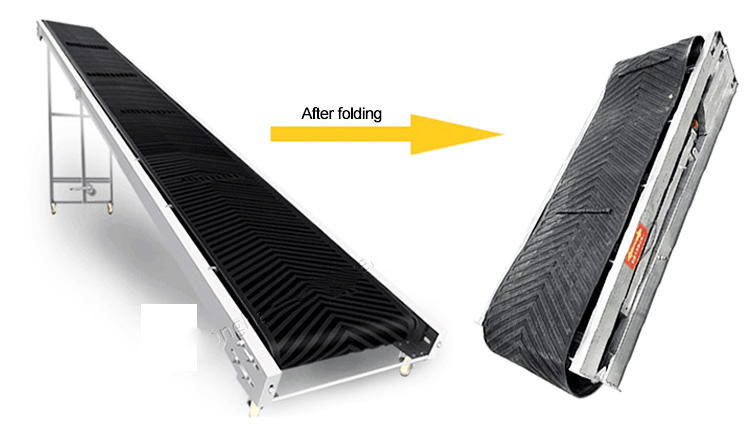

The Small Portable Conveyor Belt for Grain is highly mobile and suitable for various grain handling scenarios. The entire machine features a lightweight steel frame structure and is equipped with heavy-duty swivel casters and a towing handle. When folded, its compact size allows for easy movement between warehouses and outdoor areas by a single worker, eliminating reliance on bulky equipment and forklifts. Utilizing a food-grade PVC patterned conveyor belt with herringbone or corrugated sidewalls, grains move smoothly even at 30-45° angles, preventing rolling and compression, significantly reducing cracking and breakage, and protecting the integrity of the grain grains. The unloading height and tilt angle can be quickly adjusted manually or electrically, perfectly adapting to truck beds of varying heights, grain silo inlets, and stacking locations. For outdoor storage areas and temporary grain receiving points without electricity, gasoline or diesel engines are available as options, and customization of length, width, angle, frame material, and discharge height is supported according to customer requirements.

How does the Small Portable Conveyor Belt for Grain work?

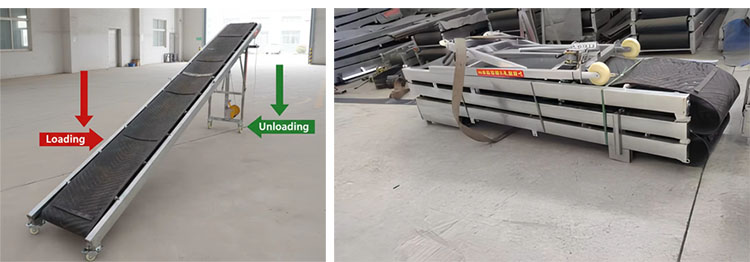

When the Small Portable Conveyor Belt for Grain is running, the motor drives the drive drum to rotate through a reduction gear mechanism. The drum drives the conveyor belt to run continuously. Grain enters the conveyor belt surface from the feed hopper and moves smoothly along the conveying direction under the action of friction. It is automatically unloaded at the discharge end. The entire conveying process is smooth and continuous, effectively reducing grain breakage and material loss.

Small Portable Conveyor Belt for Grain Parameters

Carrying roller form	Belt speed (m/s)	Bandwidth (mm)
		500	650	800	1000	1200	1400
		Conveying capacity G (t/h)
Grooved idler	0.8	78	131	-	-	-	-
	1.0	97	164	278	435	655	891
	1.25	122	206	348	544	819	1115
	1.6	156	264	445	696	1048	1427
	2.0	191	323	546	853	1284	1748
	2.50	232	391	661	1033	1556	2118
	3.15	-	-	824	1233	1858	2528
	4.0	-	-	-	-	2202	2996
Parallel idler	0.8	41	67	118	-	-	-
	1.0	52	88	147	230	345	469
	1.25	66	110	184	288	432	588
	1.6	84	142	236	368	553	753
	2.0	103	174	289	451	677	922
	2.5	125	211	350	546	821	1117

Parallel idler	10 meters	15 meters
Belt width	500-800(mm)	500-800(mm)
conveyor belt speed	0.8～1.6m/s	0.8～1.6m/s
Delivery capacity(V=1.0m/s)	70～278m3/h	70～278m3/h

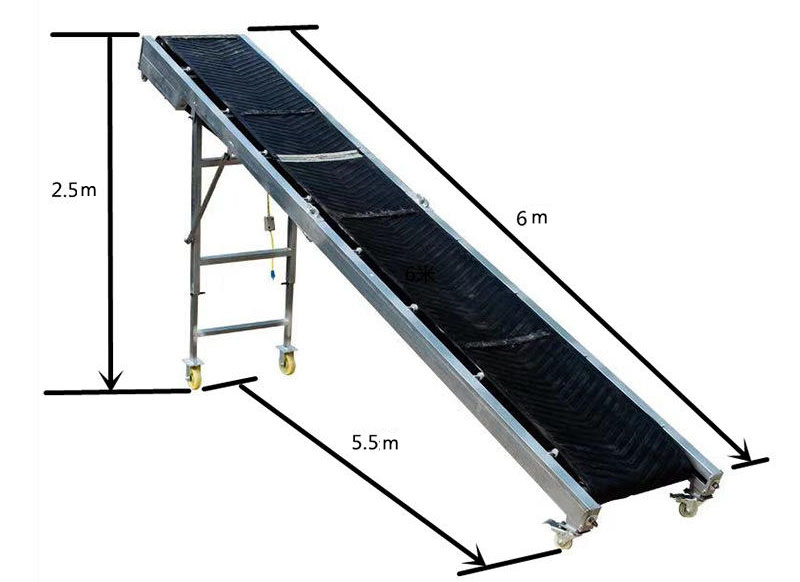

Rack Adjustment Inclination	9°～20°	9°～20°
Conveying large heights	3910mm	5700mm
Conveying small heights	2000	2700mm
tension stroke	300mm	300mm
Motor Power	2.2kw～5.5kw	2.2kw～5.5kw
Transmission reduction ratio	16.6	16.6
wire ropeф12-6×19	17 meters	26 meters
adhesive tape4(3+1.5)	22 meters	31.8 meters

What are the applications of the Small Portable Conveyor Belt for Grain?

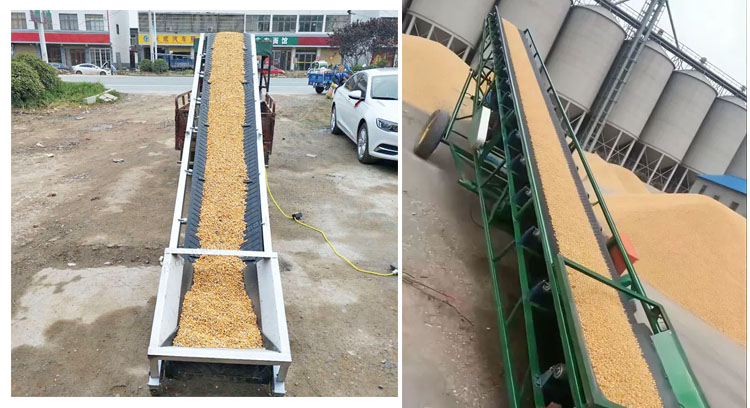

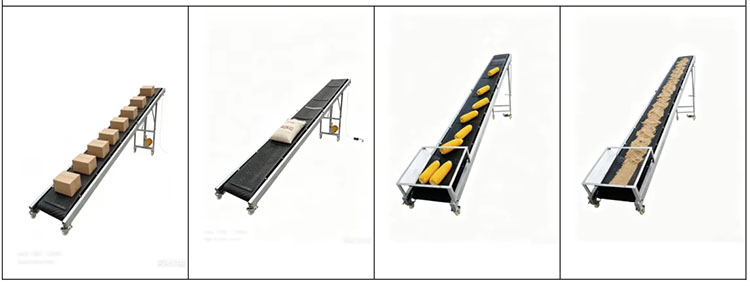

Small Portable Conveyor Belts for Grain are commonly used for transporting various grains such as corn, wheat, soybeans, rice, barley, sorghum, oats, and rapeseed. In loading operations, they enable rapid transfer of grain to trucks, containers, or transport vehicles, improving loading efficiency. In grain silo transfers, they facilitate automated transport between different areas within the warehouse. In grain processing production lines, they integrate with cleaning, screening, and packaging equipment to form automated production systems. They are also suitable for seasonal grain harvesting and temporary transfer scenarios. Furthermore, for grains with high moisture content or fragile grains, anti-slip belts and low-speed conveying solutions are available.

Reference table of common transport parameters for Small Portable Conveyor Belts for Grain used in different grains

Material Conveying	Common Application Scenarios	Recommended Conveying Length (m)	Reference Conveying Capacity (t/h)	Motor Power (kW)
Wheat	Grain transfer, truck loading, grain storage	3–10	5–30	0.75–2.2
Corn	Farm grain harvesting, storage and transportation, bulk grain loading and unloading	5–12	10–40	1.5–3
Rice	Grain processing plant, finished product transfer	3–8	3–20	0.75–1.5
Rice	Pre-packaging conveyor, production line connection	2–8	2–15	0.75–1.5
Soybean	Warehouse loading and unloading, grain distribution	5–10	5–25	1.1–2.2
Barley	Grain storage, processing, and transportation	4–10	5–25	1.1–2.2
Sorghum	Farm collection, continuous loading	4–10	5–30	1.1–2.2
Oats	Light grain transportation, storage and transshipment	3–8	2–15	0.75–1.5
Feed Pellet	Feed mill loading and pre-packaging conveying	3–12	5–35	1.5–3
Rapeseed	Oilseed transportation, storage and turnover	3–8	3–18	0.75–1.5
Peanuts	Agricultural product loading, unloading, processing, and transportation	4–10	5–20	1.1–2.2
Coffee Beans	Roasting Plant, Raw Material Transportation	2–8	2–12	0.

Small Portable Conveyor Belt for Grain Case

In a corn loading project in Pakistan, the customer previously used manual handling, resulting in low loading efficiency and high labor costs. After introducing a 500mm wide Small Portable Conveyor Belt for Grain, continuous automated transport to a position 8 meters away for loading was achieved, with a conveying capacity of 20 tons per hour. Loading efficiency was significantly improved, while the grain breakage rate was reduced.

Small Portable Conveyor Belt for Grain FAQ

Can the Small Portable Conveyor Belt for Grain handle oilseeds (rapeseed, sunflower seeds)?

Absolutely. We recommend using a belt with shallowly textured edges, and an anti-static belt is optional to prevent small oilseeds from adhering. The conveyor angle should not exceed 35° to maintain material stability.

What are the minimum passage width and storage dimensions?

The B400/B600 models have a folded width of approximately 0.9-1.1 meters, easily passing through standard doorways. The entire unit can be stored vertically, occupying less than 2 square meters of floor space.

Can the Small Portable Conveyor Belt for Grain be used outdoors? How is its rain protection?

The motor and control box have an IP55 waterproof rating, capable of withstanding short periods of light rain. For long-term outdoor use, we recommend covering it with a waterproof tarpaulin or opting for a rain cover. The diesel version is more suitable for unprotected outdoor environments.

Why Choose Dahan's Small Portable Conveyor Belt for Grain?

Many inexpensive belt conveyors on the market are based on general industrial designs, resulting in bulky machines, susceptibility to rust, and high belt stiffness that easily damages grain. Dahan, however, has focused on grain conveying for over 18 years. This Small Portable Conveyor Belt for Grain has been repeatedly optimized based on real feedback from hundreds of farms worldwide:

Grain-Specific Optimization: From belt material and sidewall height to hopper angle, all parameters are designed for the density and flowability of common grains such as corn, soybeans, and rice.

Lightweight and Robust: While reducing weight, key stress-bearing areas are reinforced with ribs and double-layered tube walls to ensure long-term torsional resistance and prevent deformation.

Factory Direct Supply, Fully Customizable: Colors, belt types, machine lengths, and even wireless remote control systems can be specified. We offer fast shipping and online technical support.

Global Logistics Experience: Standard models are readily available for immediate shipment, and customized orders are produced on a tight schedule. Sturdy iron frames or fumigation-free wooden crates ensure damage-free transport by sea and land.
