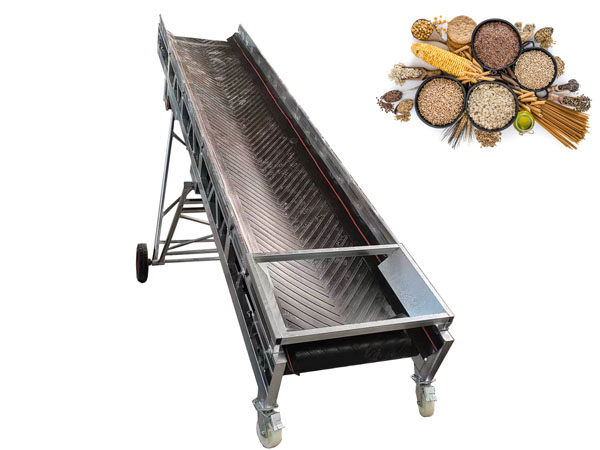

Small Portable Conveyor Belt

What is a Small Portable Conveyor Belt

The small portable conveyor belt is designed for flexible and efficient material handling.

Small portable conveyor bselt can be used for horizontal or inclined transportation. It is very convenient to use. It is widely used in various modern industrial enterprises, such as underground roadway, surface transportation system, open pit mining and concentrator. According to the requirement of conveying technology, it can be transported by a single conveyor or by multiple conveyors or by other conveying equipments to form a horizontal or inclined conveying system to meet the needs of different layouts of operation lines.

How the Small Portable Conveyor Belt Transports Materials

The motor drives the drive pulley to rotate. Friction pulls the conveyor belt to run continuously, and materials on the belt move along with it.

The conveyor belt circulates around the drive pulley and bend pulley. The tensioning device keeps the belt tight to prevent slipping.

Small portable conveyor belt structure

A complete portable conveyor consists of a belt conveying system, a lightweight movable frame, and auxiliary safety parts.

Drive motor: Copper-wire motor at the tail provides reliable power.

Non-slip belt: Chevron pattern for stable conveying of bulk materials.

Galvanized steel frame: Lightweight, rust-resistant, and foldable for easy transport.

Hand winch: Adjusts the conveying angle easily (as shown in the picture).

Swivel casters: Enable flexible movement between sites.

Anti-run-off design: Ensures the belt stays centered during operation.

Technical Specifications

The table below lists the core specifications of our small portable conveyor, which can be customized to match your specific material and working conditions.

Parameter	Specification	Remarks
Conveying Length	5 - 10 m	Customizable
Belt Width	400 / 500 / 600 / 800 mm	Optional
Belt Speed	1.25 - 2.0 m/s	VFD optional
Conveying Capacity	30 - 200 t/h	Varies by material and angle
Inclination Angle	0° - 30°	Adjustable (Manual winch)
Motor Power	1.5 kW - 7.5 kW	Copper-wire motor
Belt Material	Rubber / PVC / Chevron belt	Depends on material
Frame Material	Galvanized square steel	Lightweight & rust-resistant
Mobility	Swivel casters / Pneumatic tires	With brakes
Lifting Method	Manual winch / Hydraulic	For angle adjustment
Anti-run-off Design	Standard	Ensures belt stays centered

Features and Benefits

Designed for flexible mobility and stable performance, this conveyor delivers high capacity with low maintenance costs.

Low Belt Speed & Stable Operation

Operates at a low belt speed for smooth, reliable running, with a conveying capacity of 30–200 tons per hour.

Compact Size & Easy Mobility

Features a small footprint and a lightweight design, making it easy to move back and forth between different working sites for flexible conveying operations.

High Safety & Low Maintenance

Designed with high safety standards, simple maintenance requirements, and low overall operating costs.

Application

Small portable conveyor belts are widely used in the assembly, testing, debugging, packaging and transportation of objects in various industries such as home appliances, electronics, electrical appliances, machinery, tobacco, injection molding, post and telecommunications, printing, and food.

Customization Options

We offer flexible configurations to meet your specific working conditions:

Adjustable Tilt Angle: Equipped with a manual winch or hydraulic lifting device for inclined conveying.

Horizontal Type: Fixed-angle design for flat surface transportation and assembly lines.

Customized Length: Available in any length from 5 to 10 meters to fit your site.

Mobile Configuration: Swivel casters for indoor use, or pneumatic tires/towing chassis for outdoor rough terrain.

Frequently Asked Questions (FAQ)

Q: Can the height and angle of the portable conveyor belt be adjusted?

A: Yes. It comes with adjustable support legs and a flexible tilting mechanism, making it easy to adjust the height and angle to match different equipment.

Q: What is the maximum weight capacity it can handle?

A: This depends on your customized size and motor power. It is primarily designed for small to medium-sized goods or bulk materials, easily handling tens to a couple of hundred kilograms.

Q: Are customized power supply voltages available for international shipping?

A: Absolutely. We can customize electric motors and control boxes to match your local standard voltages (e.g., single-phase 110V/220V or three-phase 380V).

Ordering Notes:

When ordering, the basic technical parameters such as belt speed, bandwidth, conveying distance, conveying volume, inclination angle, material characteristics, working environment and stacking angle should be noted.
