Wood chips conveyor belt

What is a wood chip conveyor belt

Wood chip conveyor belt is a continuous conveying equipment designed for conveying light, loose, dusty and entangled materials. It is mainly used to efficiently transport sawdust, shavings, wood chips, etc. generated in the wood processing process to the target location in a stable, closed and pollution-free manner to adapt to a variety of production environments such as wood mills, biomass fuel plants, wood-based panel companies, etc.

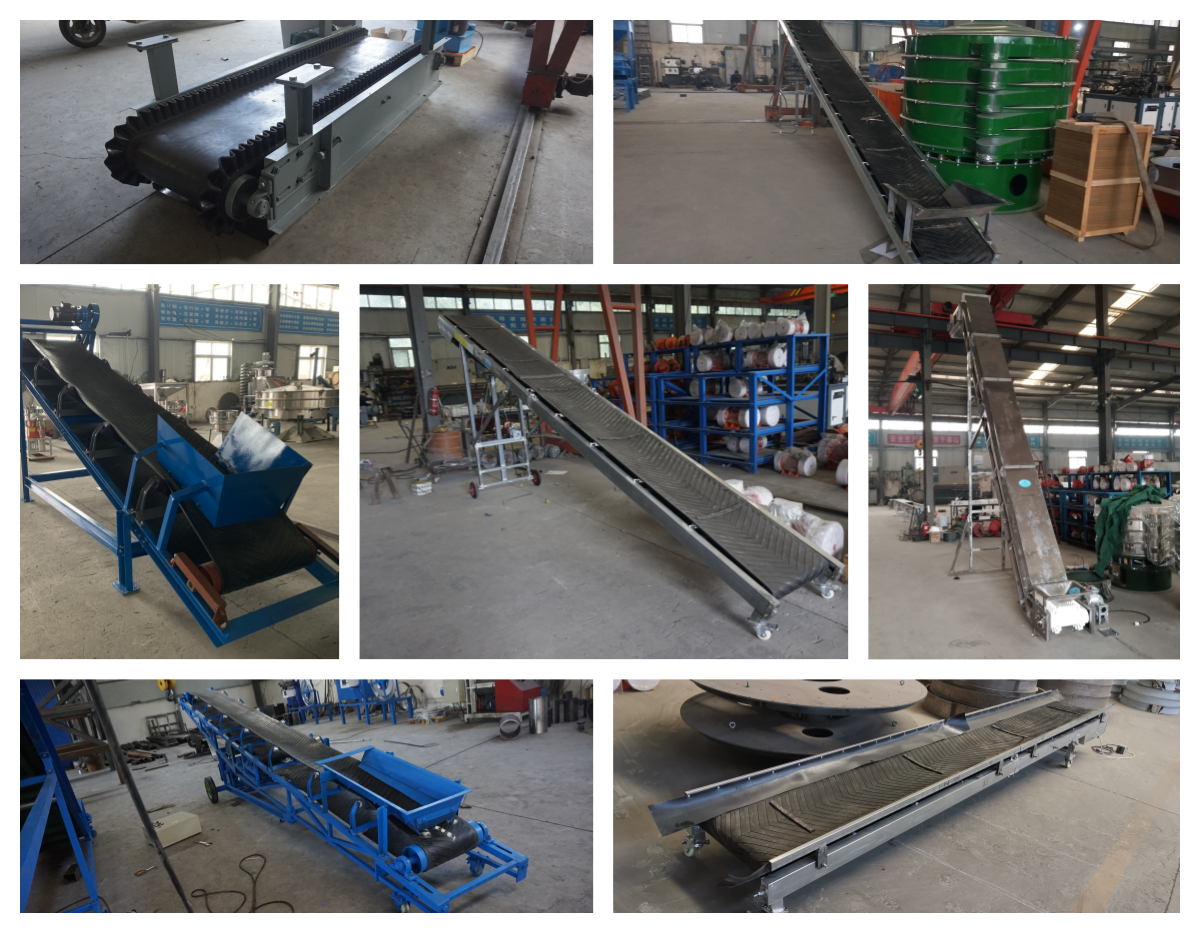

What are the types of wood chip conveyor belts

Wood chip conveyor belts can be divided into three types according to their different structures, and each type is suitable for specific wood chip conveying scenarios (such as wood processing, biomass energy, papermaking, etc.).

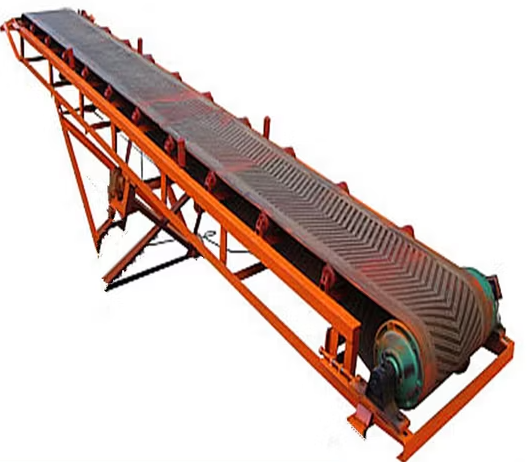

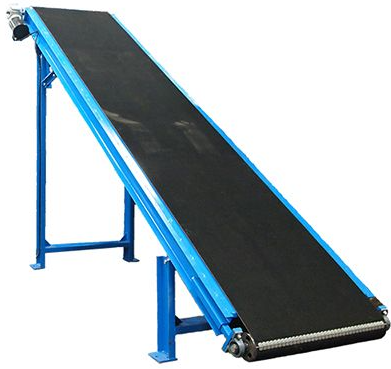

Fixed wood chip conveyor belt

Definition: Flat belt made of rubber, PVC or PU, conveying wood chips horizontally or at a small angle

Applicable scenarios: Fixed production lines in wood processing plants and biomass power plants, wood chips from cutting machines to yards

Features: Large conveying capacity, but not suitable for large angles or mobile needs

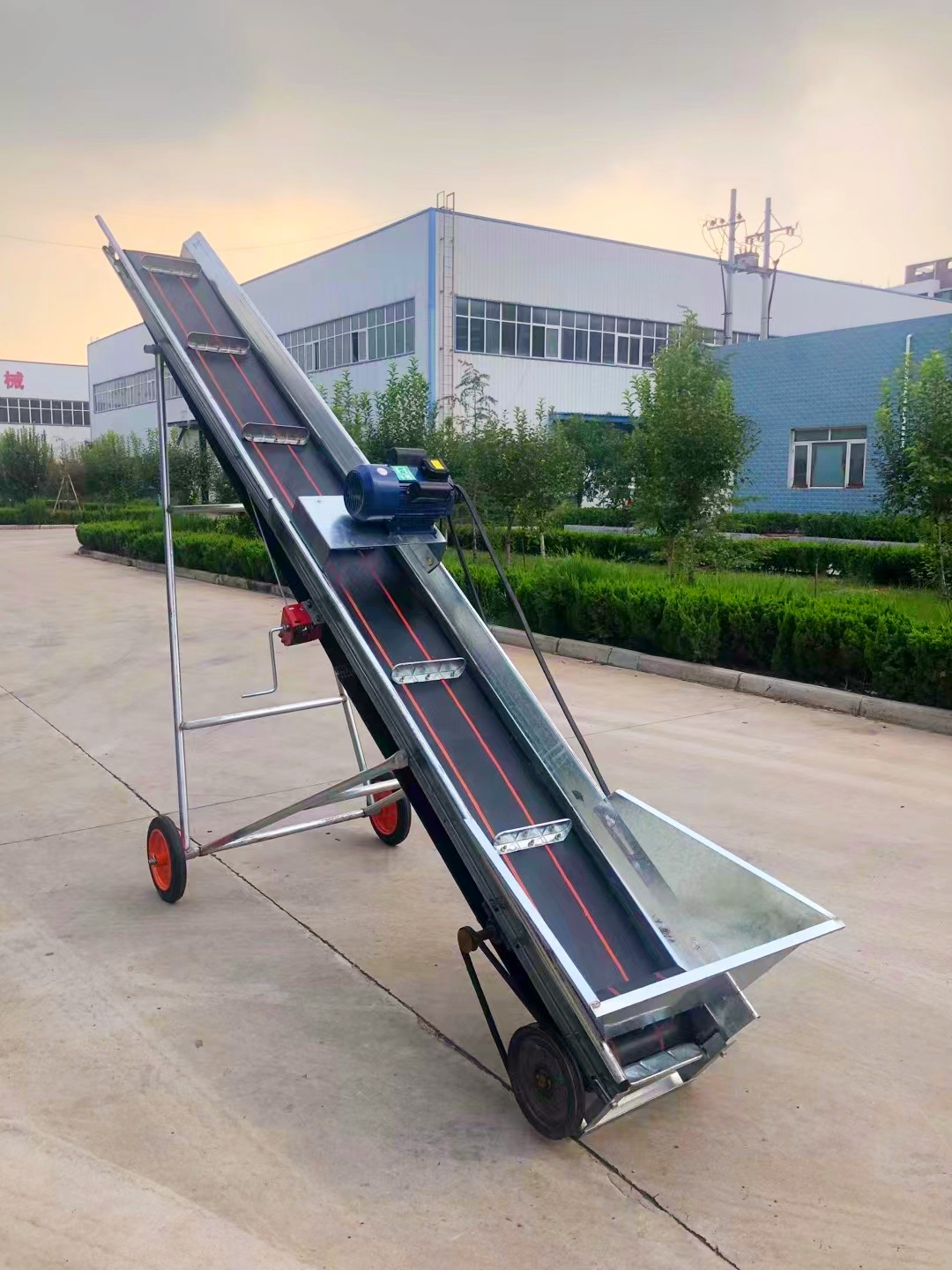

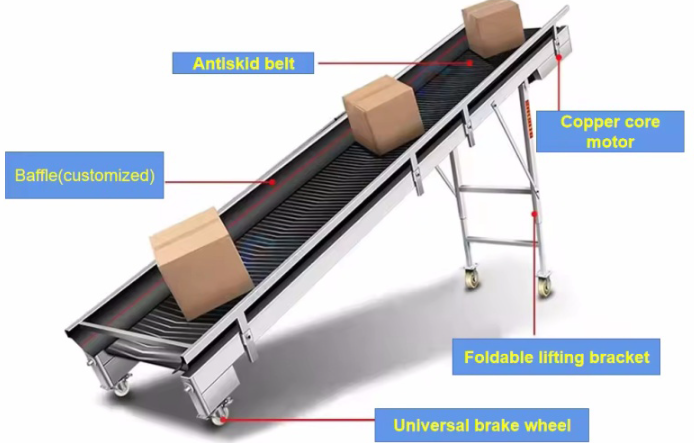

Mobile wood chip conveyor belt

Definition: Belt conveyor with running wheels or tracks that can be flexibly moved

Applicable scenarios: Temporary yards, wood chip loading and unloading trucks, port bulk material transportation

Features: Lower carrying capacity than fixed type, used in a variety of scenarios

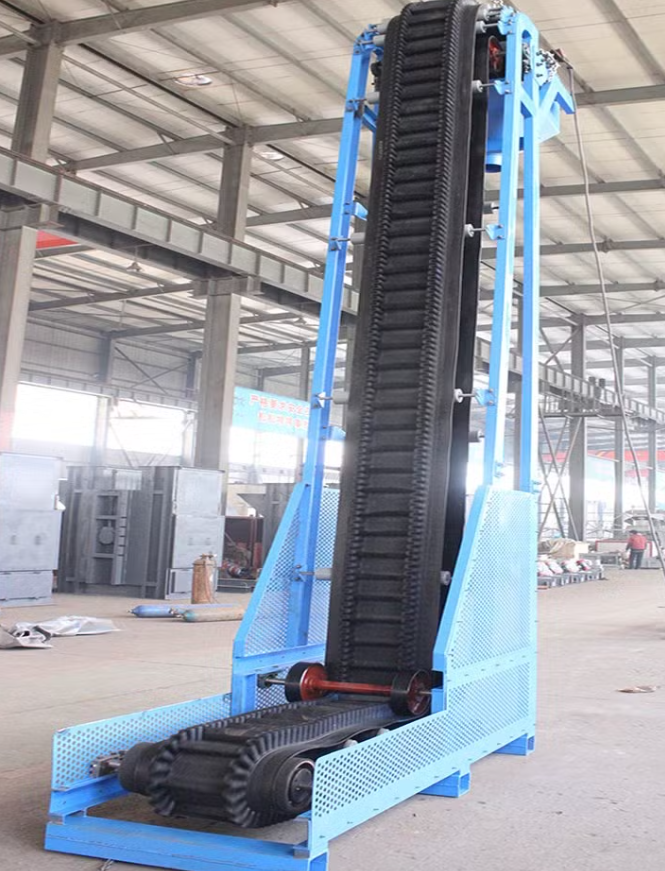

Large-angle belt conveyor

Definition: Conveyor belt with corrugated sidewalls or partitions, which can achieve 30°-90° large-angle conveying

Applicable scenarios: Vertical lifting of wood chips in biomass power plants, factories with limited space

Features: High cost, wood chips may adhere, suitable for large angles or vertical conveying

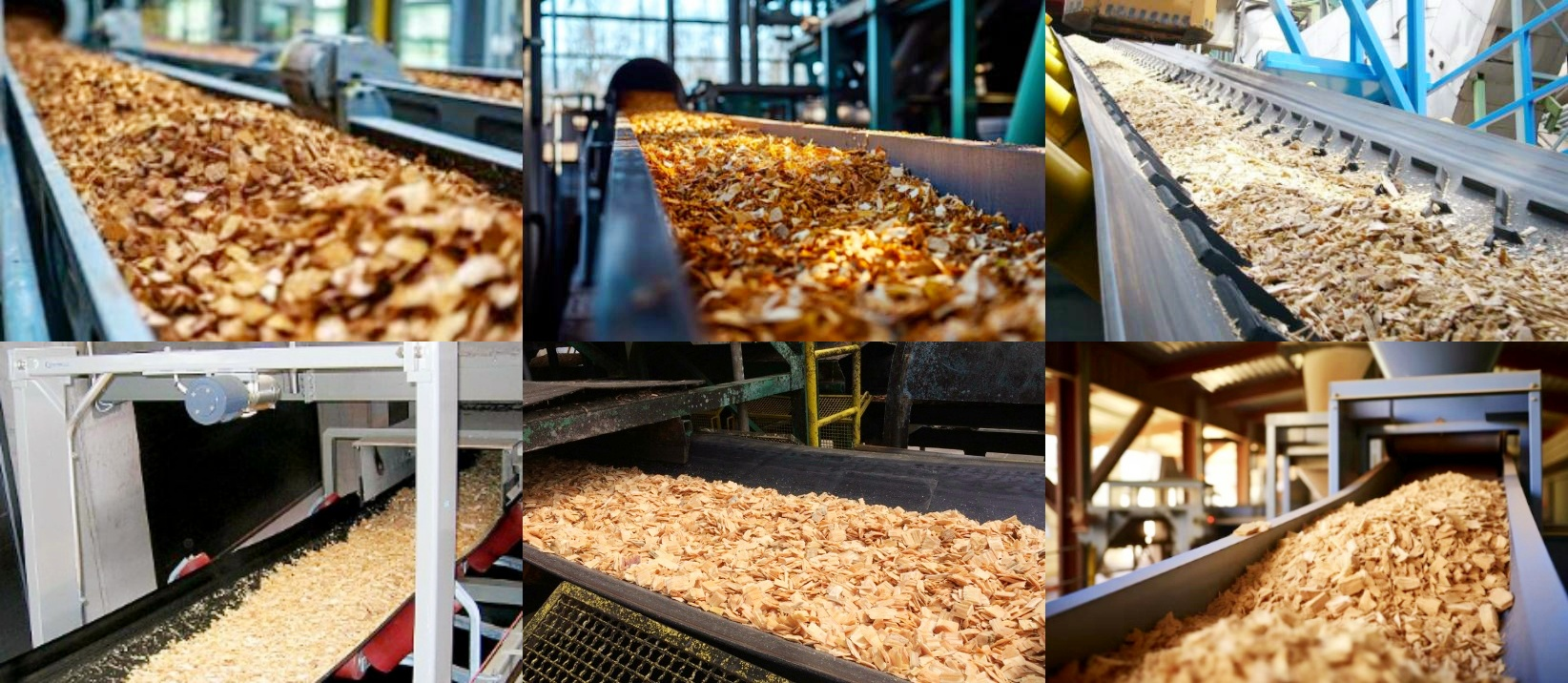

Applicable materials for wood chip conveyor belt

As a specially designed conveying equipment, wood chip conveyor belts are suitable for a wide range of materials, mainly focusing on wood chips and related processed products.

Core applicable material sources: wood chips, wood powder, wood shavings

Extended applicable materials: biomass raw materials, wood chip products, wood chip mixtures

Special working conditions applicable materials: high temperature wood chips, wet wood chips, corrosive wood chips

Video of wood chip conveyor belt

What is the working principle of wood chip conveyor belt

The working principle of wood chip conveyor belt is to convert the rotational energy of the drive motor into the linear movement of the belt or chain, so as to continuously and stably convey loose wood chips and other materials from one point to another.

The wood chips are evenly loaded onto the surface of the conveyor belt through the feed hopper or manually.

The motor drives the roller through the reducer to make the conveyor belt run along a fixed track (horizontal, inclined or vertical), and the wood chips move with the belt. The belt speed is usually 0.5-3 m/s, which is suitable for the lightweight characteristics of wood chips.

The wood chips fall naturally from the end of the wood chip conveyor belt under the action of gravity, or are discharged by means of scrapers and other methods.

What are the advantages of wood chip conveyor belts?

Wood chips face many challenges during the transportation process, such as dust flying, material scattering, slipping and deviation, equipment wear, etc. The wood chip conveyor belt solves these problems through structural optimization, material upgrade, function integration and other designs.

Solve the problem of light and fluffy wood chips and easy flying

By designing the wood chip conveyor belt into a groove with a certain angle, the wood chip capacity can be increased, and the sidewalls on both sides can be used to effectively prevent the wood chips from scattering and flying during transportation.

Solve the problem of irregular shape and easy entanglement of wood chips

Use a conveyor belt with a certain friction coefficient and wear resistance to prevent wood chips from sliding on the belt surface. For slender wood chips that may be entangled, choose a belt surface design that is not easy to be entangled.

Deal with the humidity and viscosity changes of wood chips

For wood chips with high humidity, choose conveyor belt materials with hydrophobic and non-sticky properties. For wood chips with high viscosity, dry the wood chips before transportation to reduce their humidity and viscosity.

Deal with the wear problem of wood chips

For the wear of wood chips, choose conveyor belt materials with high wear resistance to extend the service life of the conveyor belt. Minimize the bending and transfer times of the conveyor belt to reduce unnecessary friction and wear.

Technical specifications of wood chip conveyor belts

Project		DH5051	DH5071	DH50101	DH50102	DH50102A	DH50151	DH50152	DH50152A
Captain(m)		5	7	10	10	10	15	15	15
Bandwidth(mm)		500	500	500	500	500	500	500	500
Belt speed(m/s)		1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6
large conveying height (m)		1.63	1.59	1.77	4.52	4.52	1.61	6.32	6.32
Delivery capacity	m3>h	160	160	160	125	125	160	125	125
	/h	145	145	145	112	112	145	112	112
Tilt angle (degrees)		13°59'	9ª16	6.5°	10~>22°	10°~22°	3.81*	10°~22°	10°~22°
Electric drum	Model	DY1.4	DY1.4	DY1.4	DY1.5	DY1.3	DY1.4	DY1.6	DY1.3
	Power KW	2.2	2.2	2.2	3.0	1.1	2.2	4.0	1.1
Gross weight (kg)		518	604	892	1126	1071	1225	1491	1491

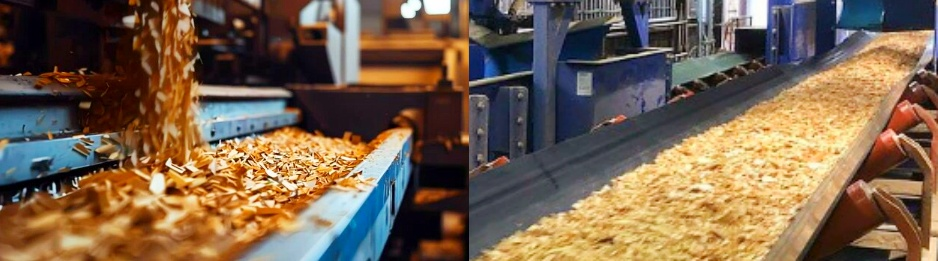

Application of wood chip conveyor belt

Wood chips conveyor belt is widely used in wood processing, biomass energy, papermaking, furniture manufacturing and other related industries because of its adaptability to light, loose and easy-to-fly materials. It is used for efficient and continuous transportation of wood chips, sawdust, wood chips, bark and other materials. Its high efficiency and stable performance significantly improves production efficiency.

Manufacturer of wood chip conveyor belt

Dahan Machinery is a manufacturer of vibrating screening and conveying equipment. Its product range usually includes various types of conveyors, and it is very likely to produce conveyor belts for grain conveying.

Diversified product line: Dahan Machinery provides a variety of types of grain conveyor belts to meet the conveying needs in different scenarios.

High-quality materials: The conveyor belt is made of high-quality rubber, PVC, PU and other materials, with good wear resistance, tear resistance and aging resistance.

Customized design: Provide personalized conveyor belt customization services according to the specific needs of customers.

By communicating directly with Dahan Machinery's customer service, you can get the most accurate product information and customized solutions to meet your grain conveying needs.
