Roller Bed Belt Conveyor

Wednesday August-05 2026 12:01:25

How Our Roller Bed Belt Conveyors are Engineered

Designed for efficiency and durability, our roller bed belt conveyors utilize a precisely engineered mechanical architecture to reduce friction and handle medium-to-heavy loads seamlessly.

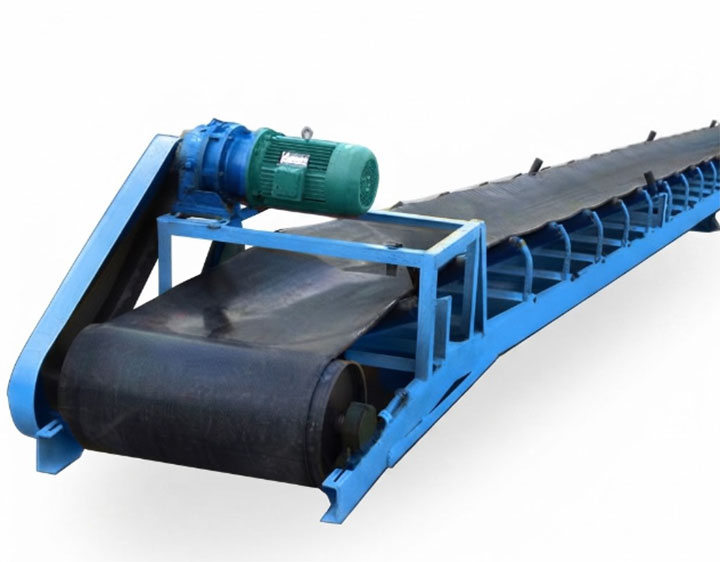

Heavy Duty Roller Bed Belt Conveyor with Blue Frame and Drive Motor

Roller Bed Assembly: Unlike traditional solid sliders, a series of closely spaced, heavy-duty rollers support the belt, cutting down friction and power consumption.

Drive & Tail Pulleys: Precision-machined steel pulleys ensure smooth belt tracking, high torque transmission, and minimal slippage during continuous operation.

Heavy-Duty Belting: High-tensile, abrasion-resistant belt surfaces tailored for multi-industry sorting, packaging, and assembly lines.

Robust Structural Frame: Built with heavy carbon or stainless steel channels, ensuring maximum rigidity and long service life under rigorous industrial environments.

Technical Specifications & Load Capacity Matrix

Standard and custom configurations designed to meet rigorous industrial throughput requirements.

Specification Parameter	Standard Range / Options	Engineering Notes
Belt Width	400 mm – 1500 mm	Custom widths available upon request
Max Load Capacity	Up to 150 kg/m (Medium to Heavy Duty)	Dependent on roller pitch and frame rigidity
Roller Diameter & Pitch	Dia: 38mm / 50mm / 60mm; Pitch: Custom spaced	Optimized to prevent belt sagging under load
Conveyor Speed	0.1 – 0.5 m/s (Adjustable via VFD)	Supports constant or variable speed control
Frame Material	Carbon Steel (Powder Coated) / Stainless Steel	Corrosion-resistant options for food/chemical use

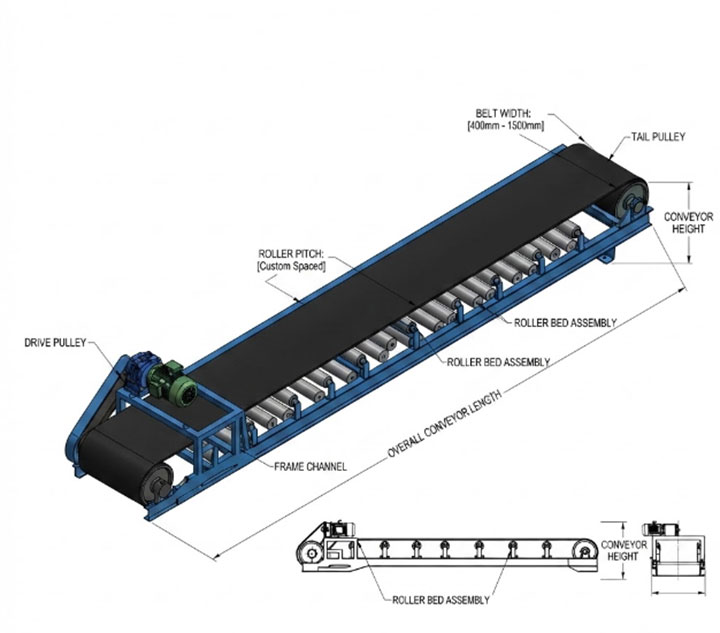

Technical CAD Drawing and Dimensions of Roller Bed Belt Conveyor with Belt Width and Roller Pitch

Engineering Comparison: Roller Bed vs. Slider Bed Conveyors

Choosing the right conveyor bed type depends on your load requirements, energy constraints, and operational environment.

Performance Metric	Roller Bed Conveyor	Slider Bed Conveyor
Friction & Energy Efficiency	Low rolling friction; highly energy-efficient for long runs.	Higher sliding friction; consumes more power over distance.
Load Capacity	Ideal for medium-to-heavy loads and bulk cartons.	Best suited for light-to-medium loads and small packages.
Belt Wear & Lifespan	Minimal underside wear, resulting in longer belt lifespan.	Continuous friction against the slider plate increases wear.
Best Application	Long-distance transport, distribution centers, heavy assembly.	Inspection lines, light packaging, manual sorting stations.

Proven Applications Across Industrial Material Handling

Our roller bed belt conveyors are engineered to perform reliably across diverse, demanding industrial environments.

Warehousing & Distribution Centers: Optimized for high-speed parcel sorting, box handling, and long-distance transit with minimal energy loss.

Manufacturing Assembly Lines: Provides a stable, durable platform for moving heavy components between workstations safely and efficiently.

E-Commerce Packaging & Fulfillment: Handles varying box sizes and weights seamlessly, ensuring continuous flow during peak operational hours.

Industrial Processing Plants: Built with robust frames to withstand rigorous factory conditions while transporting finished goods or raw materials.

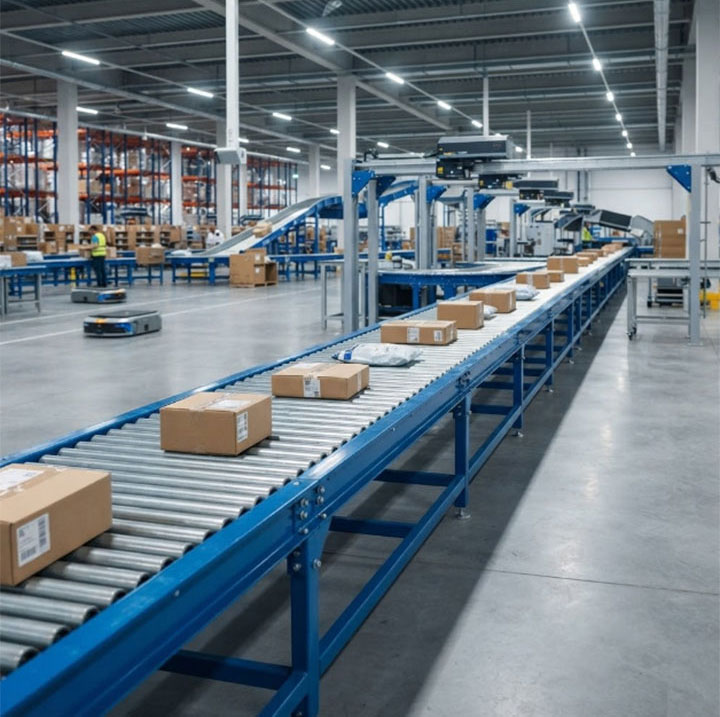

Roller Bed Belt Conveyor Operating in an Industrial Warehousing and Distribution Center

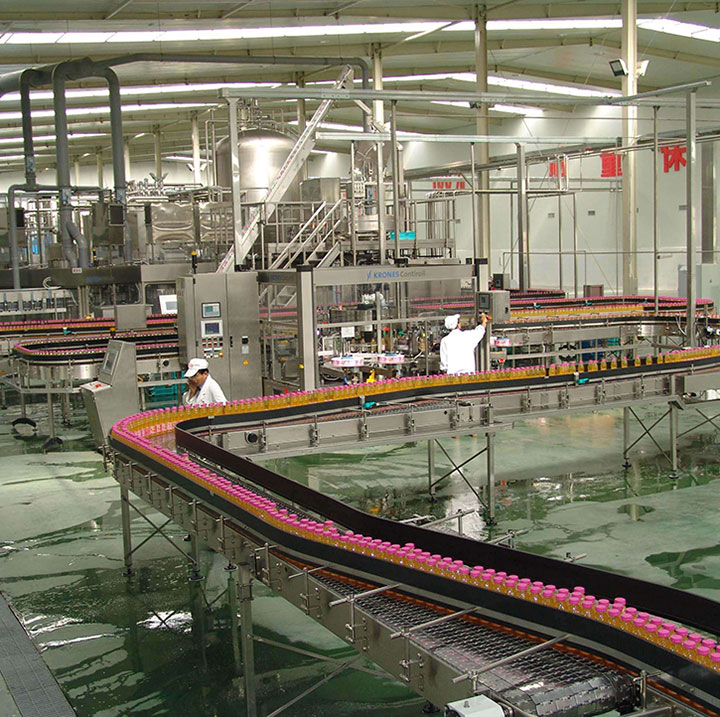

Roller Bed Belt Conveyor Operating in an Industrial Processing Plant for Manufacturing and Sorting

Custom Engineering Options for Specialized Facility Layouts

Every facility has unique spatial and operational constraints. We provide tailored engineering configurations to fit your exact plant layout.

Dimension & Layout Adaptation: Customizable belt lengths, widths, and incline/decline angles to integrate smoothly into existing material handling paths.

Material & Finish Selections: Choice of powder-coated carbon steel or corrosion-resistant stainless steel frames and rollers for harsh or sanitary environments.

Drive & Control Integration: Compatible with fixed-speed motors or variable frequency drives (VFD) supporting bidirectional operation and sensor-based automation.

Safety & Accessory Add-Ons: Optional guide rails, emergency stop pull cords, protective guards, and transfer plates to ensure operator safety and seamless flow.

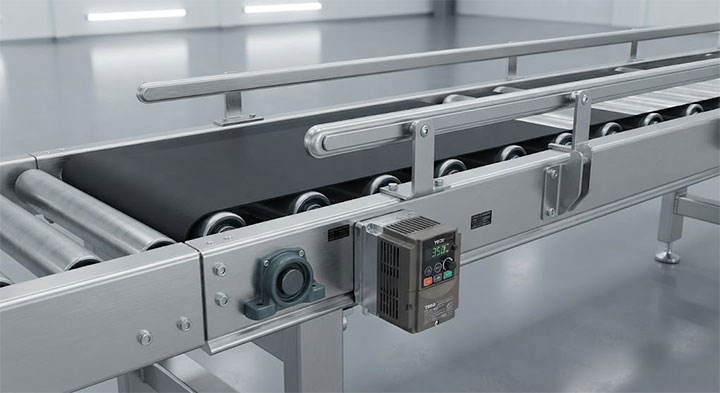

Custom Engineered Roller Bed Belt Conveyor with Stainless Steel Frame and VFD Motor

Frequently Asked Questions: Sourcing & Maintenance Insights

Expert answers to common technical and commercial questions regarding roller bed belt conveyors.

What is the maximum weight capacity of a roller bed belt conveyor?

Our standard roller bed conveyors typically support up to 150 kg per meter, depending on the roller pitch, diameter, and frame reinforcement. Heavy-duty custom options can be engineered for higher loads.

When should I choose a roller bed over a slider bed conveyor?

Choose a roller bed when dealing with medium-to-heavy loads, longer transport distances, or operations requiring lower energy consumption and reduced friction. Slider beds are generally better for lighter packages and simple inspection lines.

What routine maintenance is required for roller bed systems?

Maintenance is straightforward: periodically inspect roller bearings for smooth rotation, check belt tension and tracking, and ensure drive components are clear of debris. The sealed bearings used minimize daily upkeep.

Can these conveyors be customized for specific plant layouts?

Yes. We offer fully bespoke solutions, including custom widths, lengths, specific frame materials (such as stainless steel), and integration with variable frequency drives (VFD) for automated lines.
