Mobile Conveyor Belt for Coal
The Mobile Conveyor Belt for Coal transports coal from the feed point to the receiving point, handling loading, unloading, transfer, and stockpiling. Equipped with casters, it allows for flexible movement depending on the location. Prices range from $380 to $7800.
Conveying capacity: 50-500 m³/h
Belt speed: 1.0-4.0 m/s
Belt width: 400-1400 mm

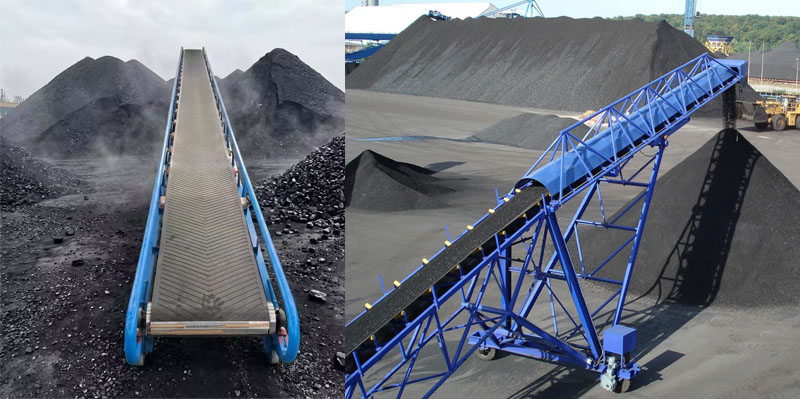

What is a Mobile Conveyor Belt for Coal?
A Mobile Conveyor Belt for Coal is used in coal plants for loading and unloading coal. It transports coal to different processing points and is a portable conveyor equipped with wheels for easy movement in open-pit mines, temporary storage yards, or rapidly changing work environments.
The Mobile Conveyor Belt for Coal uses a non-slip, wear-resistant, and flame-retardant rubber conveyor belt to reliably and continuously transport coal, gangue, coke ash, and other coal-related materials from one location to another. Belt widths range from 40 cm to 1.4 meters, with single-unit conveying lengths up to 30 meters and hourly conveying capacities from 50 to 500 cubic meters. Its structures include trough type, sidewall type, and inclined type.

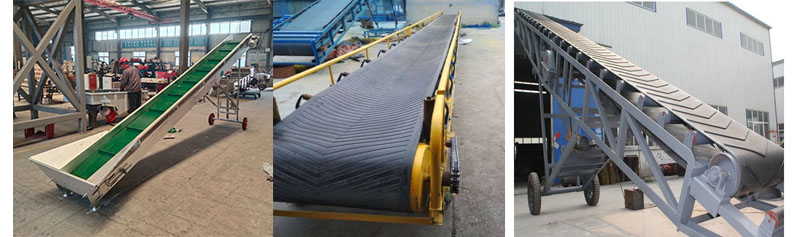

What types of Mobile Conveyor Belts for Coal are available?
Mobile Conveyor Belts for Coal come in various types, including hopper type, trough type, and steep-angle type, depending on the type of coal being transported and the application site. The appropriate type can be selected based on site requirements.

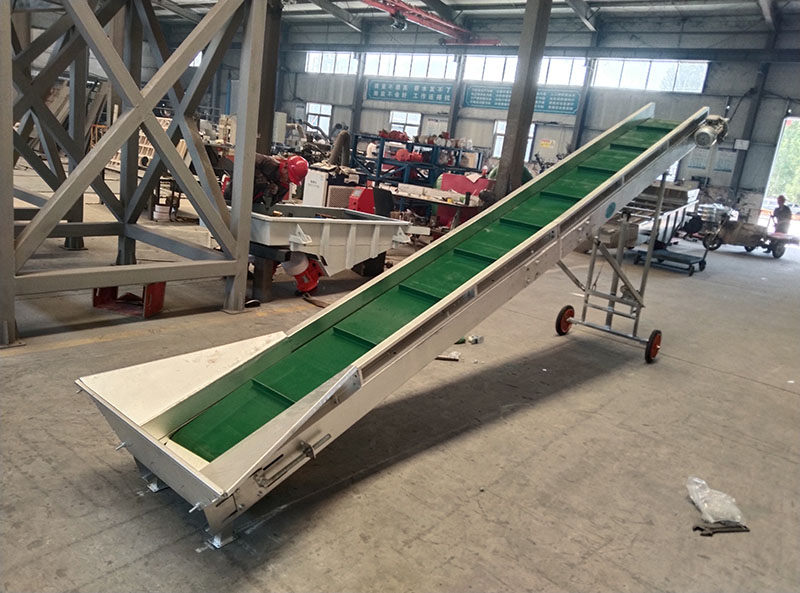

Hopper Type Mobile Conveyor Belt for Coal: Features a large hopper at the inlet to hold the coal. Hopper capacity ranges from 1L to 50L and can be customized.

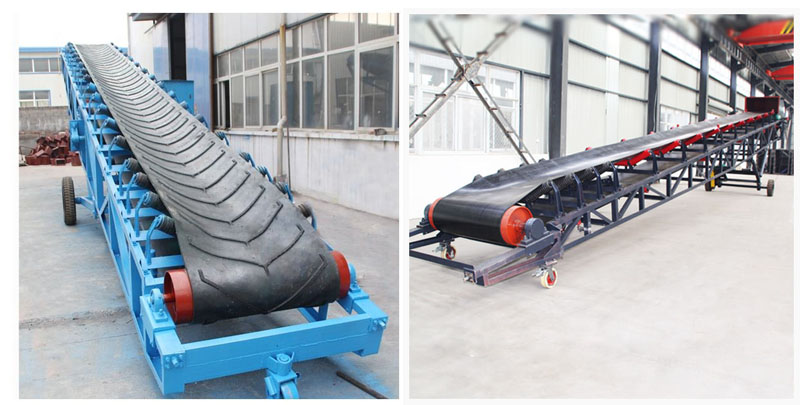

Trough Type Mobile Conveyor Belt for Coal: Features upward-protruding sides to prevent coal spillage during transport, suitable for long-distance transport of bulk coal.
Steep-Angle Mobile Conveyor Belt for Coal: Can be used for transporting coal at steep angles up to 60 degrees, allowing for uphill or downhill transport. Suitable for mines, coal blocks, and other applications with significant slopes.
What are the advantages of Mobile Conveyor Belts for Coal?
The Mobile Conveyor Belt for Coal uses a wear-resistant, flame-retardant conveyor belt, supporting both horizontal and inclined conveying. The conveying height and angle are adjustable as needed, adapting to all coal conveying stages, including unloading, transfer, stockpiling, and loading. It boasts a large conveying capacity of up to 500 cubic meters. The bottom casters allow for easy movement depending on the conveying site. It is also equipped with emergency stop, anti-deviation, and overload protection devices, ensuring safe coal conveying. Custom dimensions, inclination angles, and motor power can be customized to meet the conveying needs of different types of coal.

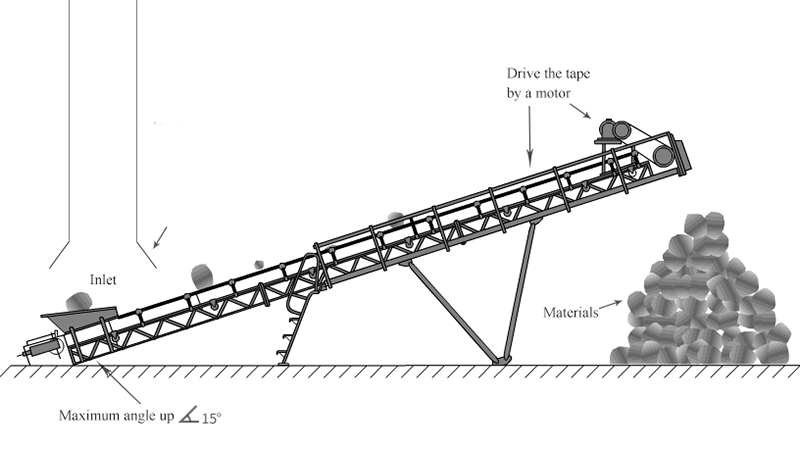

How does the Mobile Conveyor Belt for Coal work?
After starting, coal falls onto the conveyor belt from the inlet. The motor drives the conveying device, and the friction between the conveyor belt and the coal transfers the coal from one location to another. The conveying speed can be adjusted in real-time according to site conditions.
Mobile Conveyor Belt for Coal Technical Parameters
|
胶带宽度 (mm) |
输送长度(m) 功率(kw) |
输送速度 (m/s) |
输送量 (t/h) |
||
| 400 |
≤10 3 |
12-15 3-4 |
15-30 4-7.5 |
1.25-2.0 | 30-60 |
| 500 |
≤10 3 |
12-15 4-5.5 |
15-30 5.5-7.5 |
1.25-2.0 | 40-80 |
| 650 |
≤10 4 |
12-15 7.5 |
15-30 7.5-11 |
1.25-2.0 | 80-120 |
| 800 |
≤10 4 |
12-15 7.5 |
15-30 7.5-15 |
1.25-2.0 | 120-200 |
| 1000 |
≤10 5.5 |
10-20 7.5-11 |
20-40 11-22 |
1.25-2.0 | 200-320 |
| 1200 |
≤10 7.5 |
10-20 7.5-15 |
20-40 15-30 |
1.25-2.0 | 290-480 |
| 1400 |
≤10 11 |
10-20 15-22 |
20-40 22-45 |
1.25-2.0 | 400-680 |
| 1600 |
≤10 15 |
10-20 22-30 |
20-50 30-75 |
1.25-2.0 | 600-1080 |
| 1800 |
≤10 18.5 |
10-20 30-45 |
20-50 45-110 |
1.0-2.0 | 800-1500 |
| 2000 |
≤10 22 |
10-20 45-55 |
20-50 55-132 |
1.0-2.0 | 1000-2000 |
| 2400 |
≤10 30 |
10-20 55-75 |
20-50 75-185 |
1.0-2.0 | 1500-3000 |
What are the applications of the Mobile Conveyor Belt for Coal?

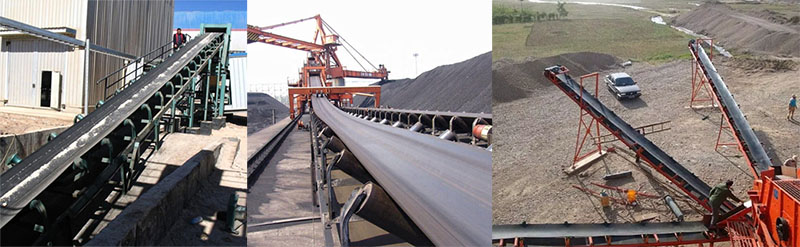

The Mobile Conveyor Belt for Coal is a portable conveyor used for temporary coal transport, mobile storage yards, truck loading, and ship loading in mines, coal plants, ports, and construction sites. It can be used to transport various types of coal, including raw coal, coking coal, gangue, bituminous coal, sub-bituminous coal, lignite, and anthracite.
Mobile Conveyor Belt for Coal Case
In a short-term mining project at a large open-pit coal mine in Southeast Asia, the Mobile Conveyor Belt for Coal was successfully applied to temporary coal transshipment and mobile storage yard operations. Typical applications include raw coal transport, truck loading, and ship loading in mines, coal plants, ports, and construction sites. This equipment offers optional belt widths of 800mm, 1000mm, or 1200mm, with conveying lengths flexibly adjustable from 15m to 60m depending on working conditions. The maximum conveying angle is 20° (with optional anti-slip patterned belts). Conveying capacity ranges from 200 to 1200 tons per hour. It efficiently handles raw coal, refined coal, coal gangue, and various types of bituminous coal and lignite, significantly improving the flexibility and efficiency of bulk coal transfer.

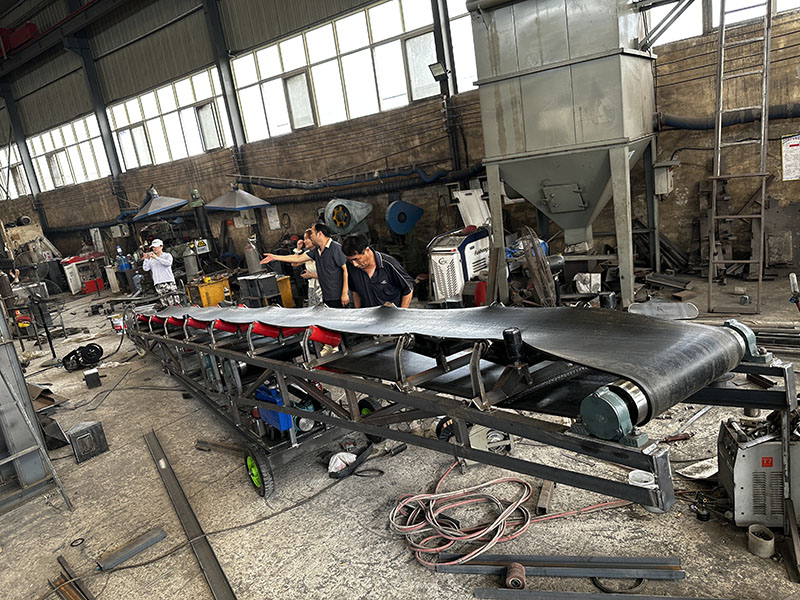

Mobile Conveyor Belt for Coal Manufacturer
Dahan Mobile Conveyor Belt for Coal manufacturer produces conveyors for coal transportation, available in both enclosed and open structures. The enclosed type is suitable for applications with high coal dust levels. Belt widths range from 400mm to 1400mm, and conveying lengths from 1 to 30 meters (lengths exceeding 30 meters can be segmented). Belt materials include steel wire rope core, flame-retardant, and wear-resistant options. The conveying angle and height can also be adjusted according to customer site conditions.
