Mobile Conveyor Belt for Grain

What is a Mobile Conveyor Belt for Grain?

A Mobile Conveyor Belt for Grain is used in the grain industry to transport bulk and bagged grain to grain silos, storage bins, and trucks. Equipped with wheels and a lifting adjustment device, it requires no fixed installation, allowing for free movement. Its height is adjustable, enabling it to handle all aspects of grain transport, including loading, unloading, warehousing, storage, and stacking. Conveying lengths are available in 5m, 8m, 10m, 12m, 15m, 18m, and 20m, with a lifting height of up to 3 meters. Multiple units can be used in series for long-distance transport. Customization is available based on the grain transport distance and site dimensions.

The width of the Mobile Conveyor Belt for Grain ranges from 40cm to 1.5m, suitable for transporting bulk to bagged grain. Various conveyor belt materials are available, including rubber, PU, ​​PVC, and PE. Hourly conveying capacity ranges from 100kg to 100tons.

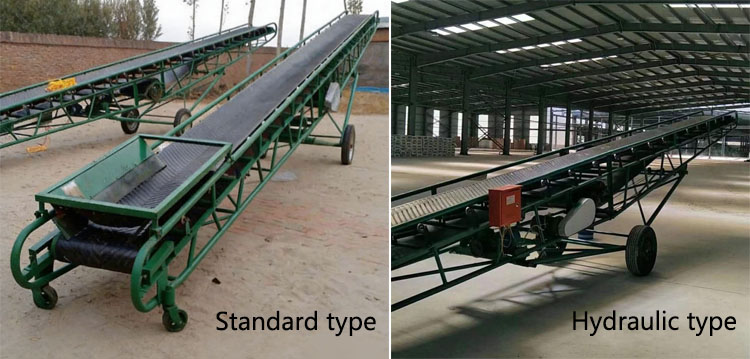

What types of Mobile Conveyor Belts for Grain are available?

The Mobile Conveyor Belt for Grain comes in two types: standard and hydraulic. The standard type has a simple structure, offering basic mobility and lifting capabilities. Lifting can be done manually or electrically, and it's primarily used for basic grain conveying, loading, and warehousing operations. It's easy to maintain and relatively inexpensive. The hydraulic type, on the other hand, is more expensive. It features a hydraulic drive system and infinitely adjustable lifting height, allowing for flexible adjustments based on the application. It's commonly used for bulk grain loading and replenishment in flat warehouses.

What are the uses of the Mobile Conveyor Belt for Grain?

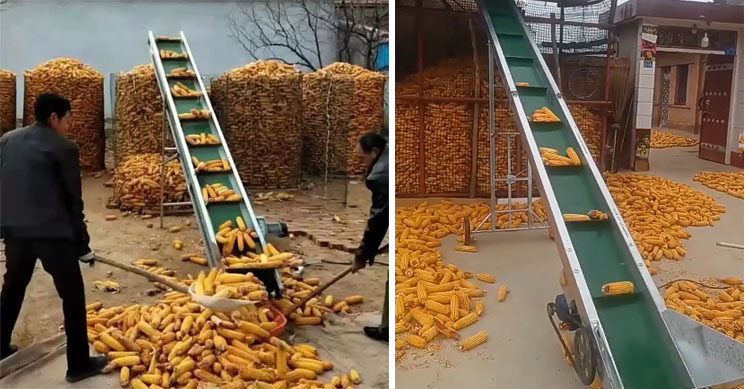

The Mobile Conveyor Belt for Grain can be used for the entire process of transporting powdered and granular grains such as wheat, corn, rice, soybeans, and miscellaneous grains, including acquisition, storage, transfer, processing, and delivery. It can transport grain from one location to another, with a length of up to 30 meters.

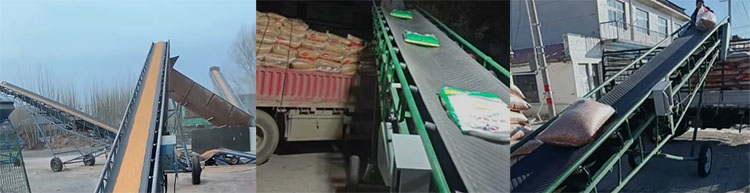

In grain loading and unloading operations, the Mobile Conveyor Belt for Grain can be adapted to trucks, vans, agricultural vehicles, and grain tankers for rapid loading and unloading of bulk and bagged grains. Its height is adjustable to accommodate vehicles of different heights, solving the problem of transporting grains with varying elevations.

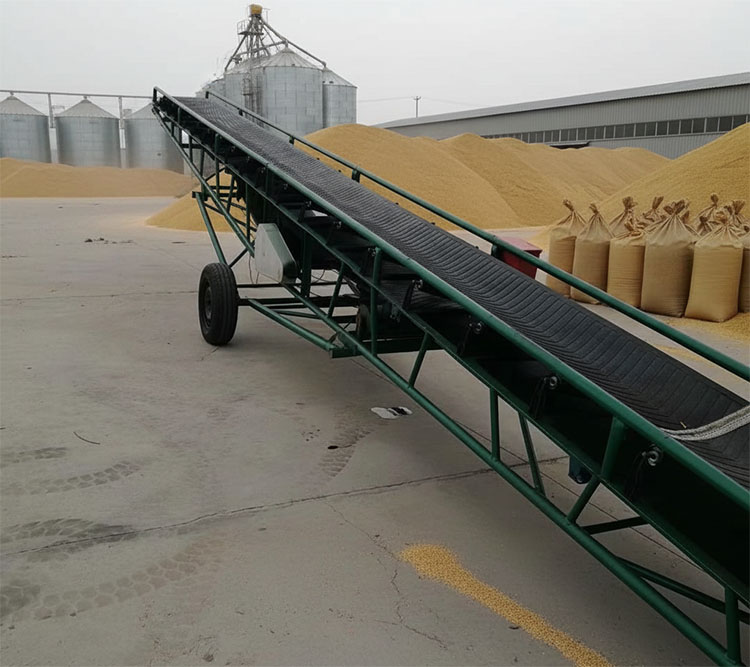

In grain depot storage operations, the Mobile Conveyor Belt for Grain can handle grain entry, exit, transfer, replenishment, and stacking operations. It can achieve uniform stacking of large grain areas, replacing manual handling and improving the efficiency of grain depot turnover. It can be used in large-scale grain reserves, private grain storage, and small grain warehouses.

In grain processing, the Mobile Conveyor Belt for Grain connects with production lines in rice processing plants, flour mills, feed mills, and grain and oil processing plants, automating raw grain loading, finished grain transfer, and material conveying.

In port and yard transshipment, the Mobile Conveyor Belt for Grain is used for grain distribution, short-distance transfer, and stacking operations at ports, docks, and open-air grain yards. The equipment is flexible and adaptable to various open-air environments, making it suitable for simple outdoor working conditions.

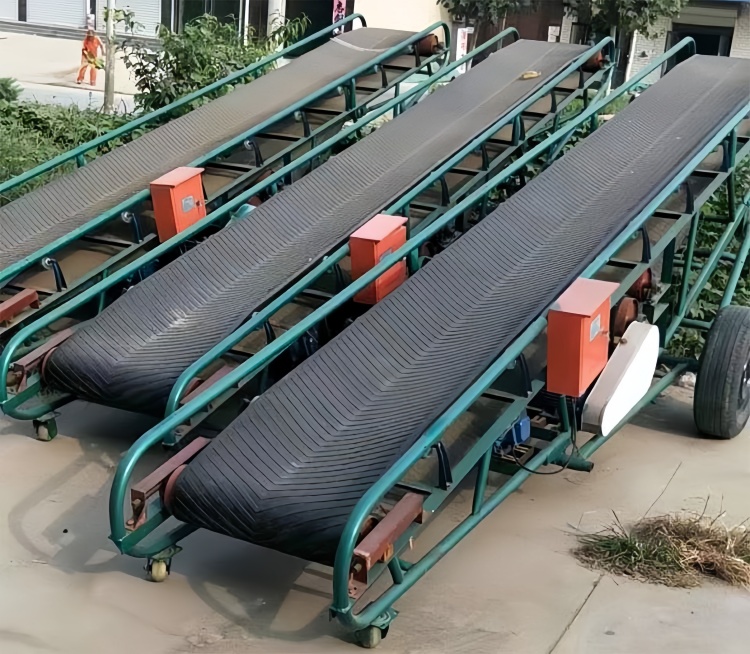

What are the advantages of the Mobile Conveyor Belt for Grain?

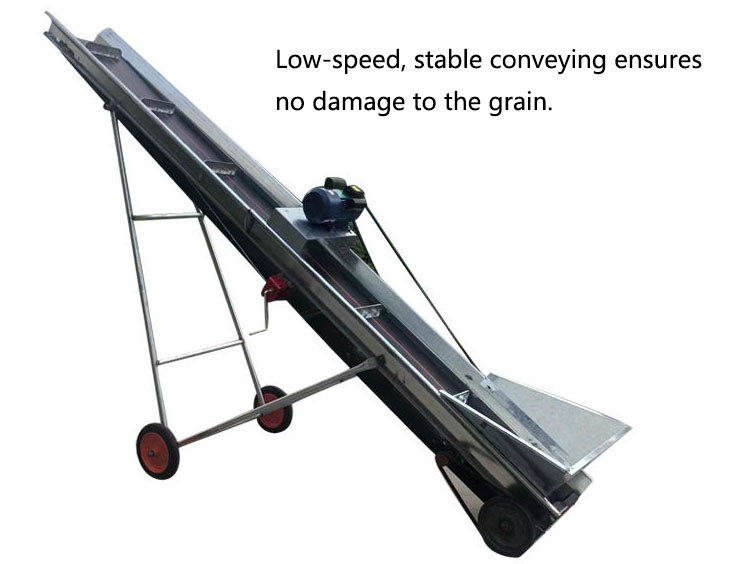

The Mobile Conveyor Belt for Grain uses a food-grade, wear-resistant rubber belt with an anti-slip textured surface to prevent grain from slipping or rolling during transport. Sealed side guards on the grain sides prevent leakage and scattering of small particles such as wheat, rice, and other grains. A low-speed, stable conveying method avoids grain impact and breakage, preserving grain integrity. Equipped with omnidirectional casters and brakes, it can be easily moved by a single person, allowing free access to warehouses, grain storage areas, workshops, open fields, and ports without the need for a fixed foundation or complex installation. It adapts to the varied and unpredictable nature of grain processing sites. A lifting device is also included, allowing for height adjustments up to 5 meters. The conveyor belt width can be adjusted for bulk or bagged grain; common widths are 400mm, 600mm, 800mm, and 1000mm, but custom widths are also available.

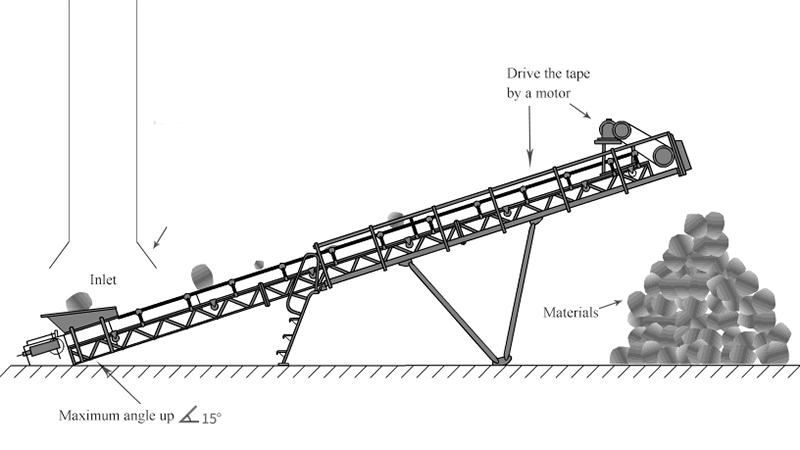

How does the Mobile Conveyor Belt for Grain work?

After the Mobile Conveyor Belt for Grain is started, grain is fed into the feed end of the equipment. Driven by the motor, the friction between the grain and the conveyor belt enables the grain to be transported. The lifting mechanism can adjust the machine's tilt angle and lifting height according to the height of the receiving device.

Mobile Conveyor Belt for Grain Parameters

Mobile Conveyor Belt for Grain Case

In a large-scale grain reserve project in Europe and America, 12m and 15m electric mobile conveyor belts for grain were selected for large-scale transport, unloading, and stacking of corn and wheat, replacing traditional manual handling. A single unit can transport over 60 tons of grain per hour, increasing operational efficiency by 80%, controlling grain breakage rate to within 0.5%, significantly reducing grain storage losses, and with extremely low maintenance costs.

Mobile Conveyor Belt for Grain Manufacturer

Dahan Mobile Conveyor Belt for Grain manufacturer offers various types of belt conveyors for transporting grain, including manual, electric, hydraulic lifting, and telescopic types. They can be used to transport various types of grain, such as powder, granules, lumps, and irregular shapes. Matching belt widths range from 400-1500mm, and custom conveyor belt materials and widths can also be customized. Lifting height and inclination angle can be adjusted according to the usage site. Factory direct sales, prices starting from as low as $300.
