Troughed Belt Conveyors for Coal

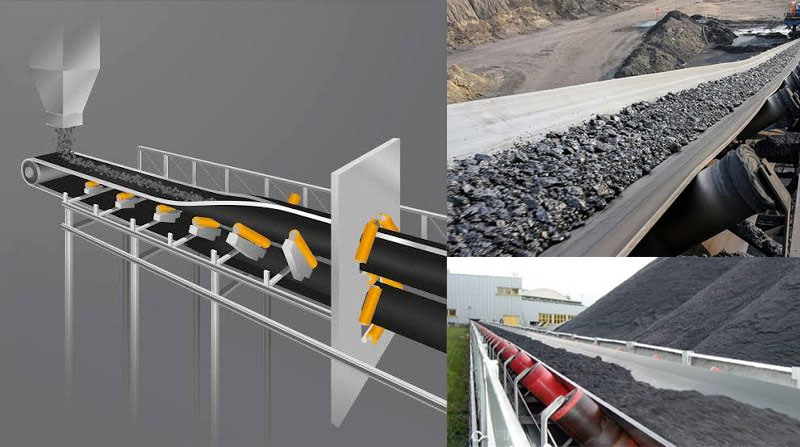

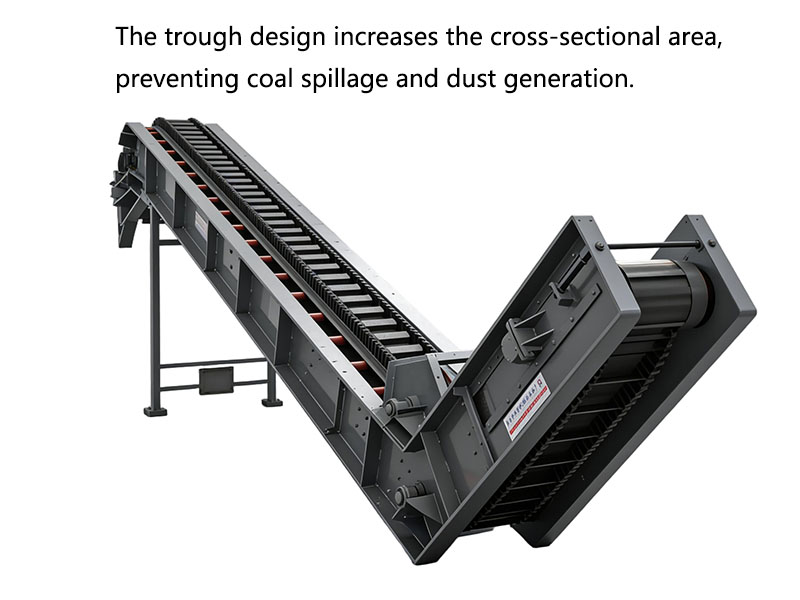

What are Troughed Belt Conveyors for Coal?

Troughed Belt Conveyors for Coal utilize a continuously circulating troughed conveyor belt to continuously transport coal. Coal is highly abrasive, flammable, explosive, and generates a great deal of dust. Its physical properties vary drastically with moisture and particle size. The trough design, using idler rollers to press the belt into a "U" or "V" shape, increases the cross-sectional area, preventing coal spillage and dust generation, and enabling continuous, enclosed conveying at steep angles and with high capacity. It can transport raw coal, lignite, bituminous coal, and coal gangue, with single units reaching lengths of up to 200 meters and capacity reaching thousands of tons per hour. When transporting coal, the conveyor belt must be selected from wear-resistant, tear-resistant, and flame-retardant steel cord or fabric core belts, and must possess strict flame-retardant and anti-static properties to adapt to the harsh environment of underground or open-pit coal mines, ensuring safe and stable operation over long distances and under high loads.

Why choose Troughed Belt Conveyors for Coal?

Troughed Belt Conveyors for Coal utilize flame-retardant and anti-static conveyor belts, strictly adhering to coal safety standards. They are non-ignitable and can prevent the spread of fire even when the drive drum slips and generates high temperatures, forming the first line of defense for passive safety. While flat belt conveyors often result in significant spillage of loose coal from the sides, Troughed Belt Conveyors for Coal, with their 35° or 45° side rollers, bend the belt into a "U" or deep "V" shaped trough, firmly holding the coal in the center. With the same belt width, the conveying capacity can be increased to 2-3 times that of flat belts, virtually eliminating spillage and keeping the roadway clean. The deep-trough idler sets, combined with the side-block belts, allow for a stable conveying angle of 18°-25°. This enables raw coal to be lifted directly from the deep shaft bottom to the surface or transported along steep trestle bridges to the coal bunker in front of the furnace, significantly shortening transportation distances and saving on infrastructure investment.

What are the structural components of a Troughed Belt Conveyors for Coal?

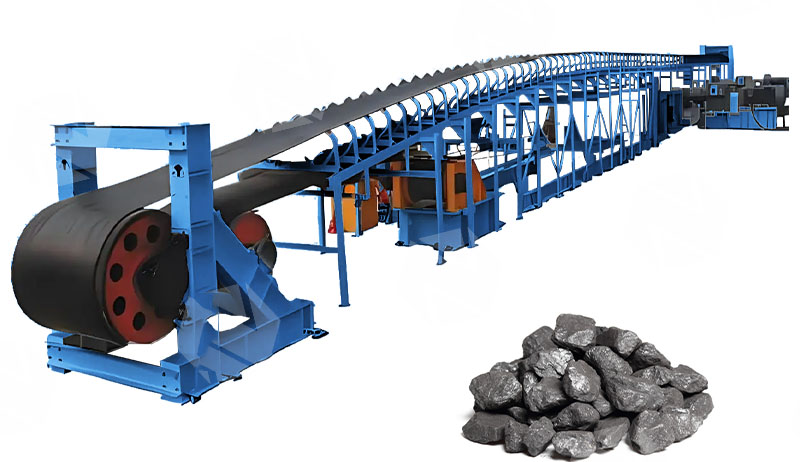

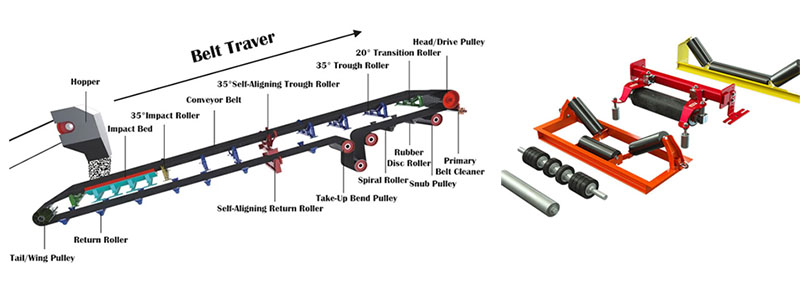

Troughed Belt Conveyors for Coal uses a flame-retardant and anti-static conveyor belt as its core load-bearing component. It consists of a variable frequency motor, a reducer, and a drive roller wrapped with wear-resistant rubber. It is equipped with a backstop to prevent large-angle reversal, a 35° or 45° deep trough three-section idler assembly, a fully sealed feed chute and dry fog/baghouse dust suppression system, multiple alloy cleaners at the head and return strokes, a counterweight or hydraulic automatic tensioning device, a frame, and anti-deviation self-aligning idlers. During operation, the feed chute confines the coal flow within its trough cross-section, preventing spillage and suppressing coal dust explosions. The cleaners remove sticky, wet coal sludge, and the tensioning and alignment structures work together to ensure the belt remains stable and does not deviate under heavy loads and the impact of abrasive coal blocks.

Troughed Belt Conveyors for Coal Parameters

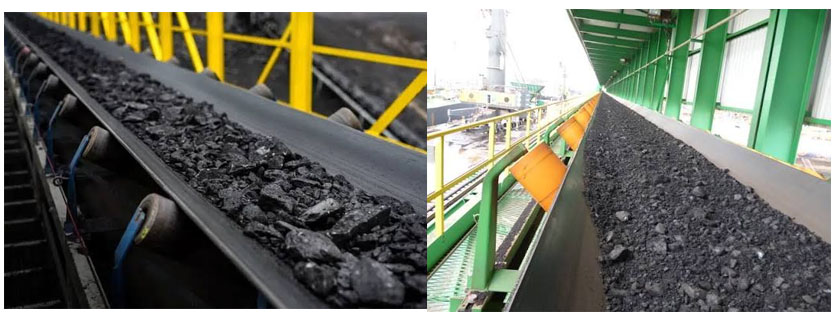

Troughed Belt Conveyors for Coal Applications and Solutions

Troughed Belt Conveyors for Coal can transport various coal types with drastically different metamorphic degrees and hardness, from directly mined raw coal containing gangue, lump coal, and fine coal, to washed and processed coal, middlings, high-ash coal slime, and various types of coal such as lignite, long-flame coal, anthracite, and lean coal. They are commonly used in core processes such as main haulage and hoisting in coal mines, coal conveyor bridges at pithead power plants, coal washing plant feed and product transportation, and coal loading at ports and wharves, easily handling the transportation needs of the entire coal flow with particle sizes ranging from 0 to 300 mm and significant fluctuations in moisture content.

Main haulage roadways in coal mines: Requires explosion-proof and compact design. A low-profile structure is provided, equipped with a fully enclosed electro-hydraulic tensioning device to maintain constant tension in narrow roadways. The belt uses high-grade PVG flame-retardant belts and has passed a full set of safety certifications.

Coal conveyor bridge at the mine mouth power plant: Connects the coal mine and the boiler coal bunker. It adopts a steeply inclined, deep-groove design and is fully enclosed with a protective cover throughout, ensuring "no exposed coal." Integrated online temperature and vibration monitoring prevents the risk of spontaneous combustion of pulverized coal, making transportation environmentally friendly.

Heavy-load transfer at coal washing plants: Carries high-moisture clean coal or middlings after washing. We have specially designed a combination of a water scraper and a polymer alloy scraper to thoroughly remove coal sludge adhering to the conveyor belt surface, preventing the formation of "coal cake road" on the return trip and keeping the corridor floor free of water accumulation and requiring minimal sludge removal.

Troughed Belt Conveyors for Coal Case

In the main shaft hoisting operation of a 10 million-ton-level coal mine in China, the client required a vertical depth of 420 meters, a transport capacity of 3000 t/h, and flame retardancy and anti-static properties. They selected our B2500 steel wire rope core flame-retardant Troughed Belt Conveyors for Coal, paired with 45° deep-groove idlers, with a machine length of 1.6 kilometers. Driven by 3×630kW, using variable frequency soft start. After commissioning, it achieved zero belt breakage and zero fire accidents for three consecutive years, with stable conveying capacity meeting standards.

Frequently Asked Questions about Troughed Belt Conveyors for Coal

Q: What is the maximum inclination angle of Troughed Belt Conveyors for Coal?

A: The standard inclination angle is typically 18° using a standard trough design. With a deep trough + sidewall combination, the stable lifting angle can reach 25°. We can accurately calculate this based on the material's angle of repose and guarantee against slippage.

Q: How to completely control dust in the coal conveying system?

A: A single method cannot eradicate dust. Our system-level solution is: sealed feed chute + dry fog dust suppression or bag filter + return belt cleaning + micron-level water mist curtain. Through a four-fold closed loop of "blocking, suppressing, removing, and cleaning," the dust concentration in the work area can be kept far below 10mg/m³.

Q: What types of conveyor belts are available for coal conveying?

A: We primarily provide solid-core flame-retardant PVC/PVG belts for downhole applications and high-abrasion-resistant flame-retardant rubber layered belts for surface applications. Tear-resistant steel mesh and impact-resistant reinforcement layers can be added as needed.

Q: What safety standards do Troughed Belt Conveyors for Coal comply with?

A: Our designs and manufacturing strictly adhere to Chinese coal mine safety standards and international ISO 340 flame-retardant standards. We can also provide MSHA or ATEX certified component configurations to meet global project compliance requirements.
