Flat Belt Conveyor

What Is a Flat Belt Conveyor? (And How It Works)

A flat belt conveyor is a versatile material handling system that utilizes a continuous flat belt stretched between two or more pulleys to transport items smoothly and efficiently across a workspace or production line.The operation relies on simple mechanical principles:

Drive Power: An electric motor rotates the drive pulley.

Friction Transmission: Friction between the rotating pulley and the flat belt drives the belt continuously along the bed.

Material Transit: Items placed on top of the moving flat surface are transported seamlessly from the loading point to the discharge end.

Types of Industrial Flat Belt Conveyors

Depending on your layout, space constraints, and material handling requirements, flat belt conveyors are typically categorized into the following types:

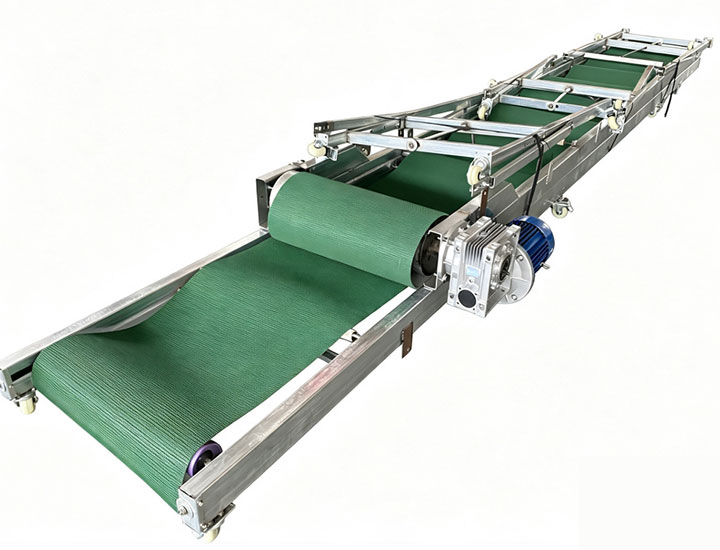

Horizontal Flat Belt Conveyors: The most common configuration for standard linear transport, sorting, and manual assembly operations on a flat plane.

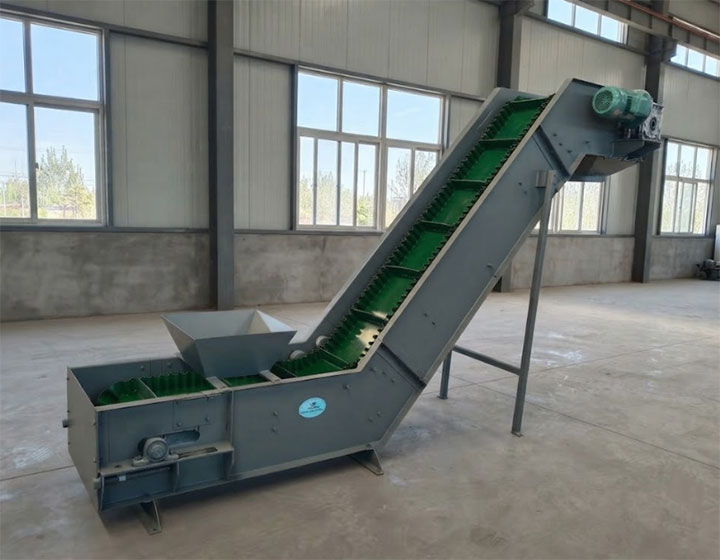

Incline / Decline Flat Belt Conveyors: Designed to transport materials smoothly between different floor levels or production stages with secure friction control.

Low-Profile Flat Belt Conveyors: Engineered with a compact, space-saving bed frame, ideal for tight spaces, stamping presses, and precision electronics manufacturing.

Modular & Custom Layout Conveyors: Tailored systems featuring specialized belt materials, corner transfers, or integrated guide rails to match complex factory layouts.

Key Technical Specifications & Customizable Options

Our industrial flat belt conveyors are engineered for durability and flexibility. Review the standard specifications below or request a custom build:

Specification Item	Standard Range / Options
Belt Width	100 mm - 2000 mm (Custom sizes available)
Conveyor Length	Customized based on workshop layout requirements
Belt Speed	Adjustable (Typically 0 - 30 m/min via VFD)
Load Capacity	Light to medium-duty loads (Up to 100 kg/m depending on drive)
Frame Material	Aluminum Profile, Carbon Steel (Powder Coated), Stainless Steel
Belt Material	PVC, PU, Rubber, Anti-Static (ESD), Food-Grade options

Customizable Options

Variable Frequency Drive (VFD) for precise speed regulation.

Adjustable side guide rails for carton or product alignment.

Cleated or textured belts for inclined transport.

Core Advantages of Our Industrial Flat Belt Conveyors

Built for high-efficiency manufacturing and automated workflows, our flat belt systems offer distinct performance benefits:

Precision Anti-Mistracking Design: Advanced roller alignment and tension mechanisms prevent belt drift, ensuring continuous, maintenance-free operation.

Quiet & Smooth Operation: Engineered with low-friction slider beds and precision bearings to minimize noise and protect delicate items during transit.

Seamless Line Integration: Modular aluminum profiles and versatile drive positions allow quick connection with existing assembly lines, packaging machines, or sorting systems.

Durable & Low Maintenance: High-quality wear-resistant belts and robust frames significantly reduce downtime and long-term operating costs.

Typical Applications Across Industries

Our flat belt conveyor systems are widely utilized across various demanding industrial environments for reliable material handling:

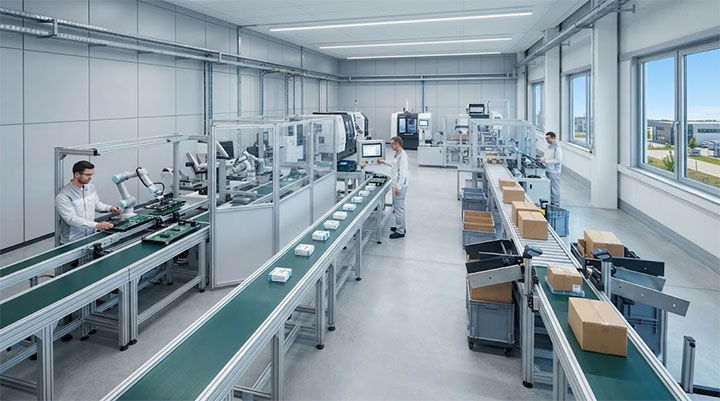

Electronics & Assembly: Ideal for precision component assembly lines requiring static-dissipative (ESD) protection and smooth, vibration-free transfer.

Food Packaging & Processing: Utilizes FDA-compliant food-grade PU/PVC belts for hygienic, easy-to-clean transport of packaged food items and boxes.

E-Commerce & Logistics: Designed for high-frequency parcel sorting, carton conveyance, and connecting warehouse distribution workflows.

Pharmaceutical & Cosmetics: Provides clean, reliable batch transfer for small bottles, medical kits, and boxed consumer goods under strict hygiene standards.

Frequently Asked Questions (FAQs)

What is the maximum load capacity of your flat belt conveyor?

Our standard flat belt conveyors are designed for light to medium-duty loads, typically supporting up to 100 kg/m depending on the motor drive and frame structure. Heavy-duty customized options are also available upon request.

Can the conveyor belt be customized with anti-static (ESD) materials?

Yes. For electronics manufacturing and sensitive assembly lines, we offer specialized anti-static (ESD) and conductive belt options to prevent electrostatic discharge.

How do you prevent the flat belt from mistracking (running off-center)?

Our conveyors feature precision-machined crowned rollers, high-stability slider beds, and easily adjustable tensioning mechanisms that effectively keep the belt centered during continuous high-speed operation.

What power supply and motor options are provided?

We offer flexible motor configurations supporting global industrial voltages (e.g., 220V/380V, 50Hz/60Hz, 3-phase or single-phase), equipped with optional variable frequency drives (VFD) for precise speed control.
