Modular Belt Conveyor is a versatile, high-performance industrial material handling system engineered with interlocking plastic or metal modules. Unlike conventional flat belt conveyors, it utilizes a positive sprocket drive to prevent slippage and supports multi-directional routing—including inclines, declines, and tight radius curves—making it the ideal solution for automated packaging, food processing, and heavy-duty manufacturing lines.

Modular belt conveyor system with incline design operating in a modern automated factory floor.

How Modular Belt Conveyors Solve High-Friction & Sludge Challenges

Traditional flat belts often fail in demanding industrial environments due to belt slippage, high friction wear, and sludge accumulation. Our engineered modular belt conveyor systems utilize an advanced mechanical design to overcome these operational bottlenecks:

Positive Sprocket Drive: Direct engagement between the plastic sprocket and belt grid prevents tension-based slippage. This ensures flawless synchronization even in wet or oily conditions.
Interlocking Hinge Design: Connected by robust hinge rods, individual modules can be locally replaced in minutes, eliminating the need to discard an entire belt when local wear occurs.
Multi-Plane Routing:Engineered to handle complex plant layouts seamlessly—transitioning from horizontal runs to inclines, declines, and tight radius turns on a single continuous drive.

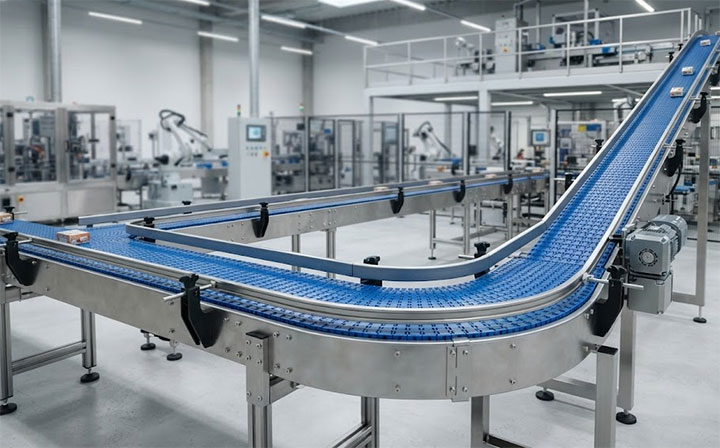

Modular belt conveyor system executing a complex layout with horizontal turns and an incline in an automated factory.

Tailoring the Conveying Surface: Choose the Right Modular Belt Type

Selecting the correct belt surface is critical for optimizing performance based on your specific application environment and material characteristics:

Belt Surface Type	Recommended Applications	Key Performance Characteristic
Flat Top	General packaging, carton handling, box sorting	Smooth, continuous surface ensuring stable transfers.
Flush Grid	Food washing, cooling lines, wet processing	Perforated open-area design for excellent drainage and airflow.
Rubber Top	Steep incline/decline transport	High-friction rubber pads preventing cargo sliding.
Flighted & Sidewall	Bulk material and powder lifting	Molded flights and side skirts to prevent material roll-back.

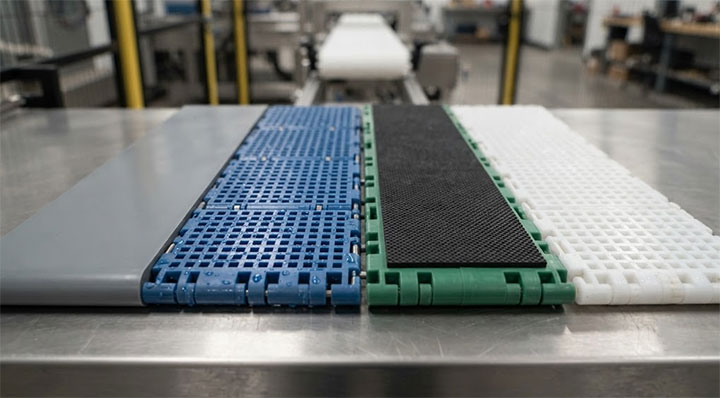

Various types of plastic modular belt surfaces including flat top and flush grid for industrial conveyors.

Technical Specifications & Customization Parameters

To ensure seamless integration with your existing production line, our modular belt conveyors can be custom-engineered to your exact operational requirements:

Parameter	Specification Details
Standard Belt Width	Available from 200 mm up to 2,000 mm (custom dimensions available upon request).
Load Capacity	Engineered to handle loads up to 1,500 N/m depending on structural frame and chain selection.
Material Options	High-grade Polypropylene (PP), Polyethylene (PE), and Polyoxymethylene (POM/Acetal) for heavy wear resistance.
Operating Temperature	Standard polymers operate reliably from -40°C to +100°C, with specialized high-temp options available.
Frame Construction	Built with sanitary-grade 304/316 stainless steel or heavy-duty anodized aluminum profiles.

Proven Applications Across Critical Industrial Sectors

Our modular belt conveyors are engineered for versatility, providing reliable material handling solutions across a wide range of demanding industries:

Food & Beverage Processing

Compliant with hygiene standards, these systems are widely used in washing, cooling, sorting, and packaging lines for meat, poultry, seafood, bottled water, and canned goods.

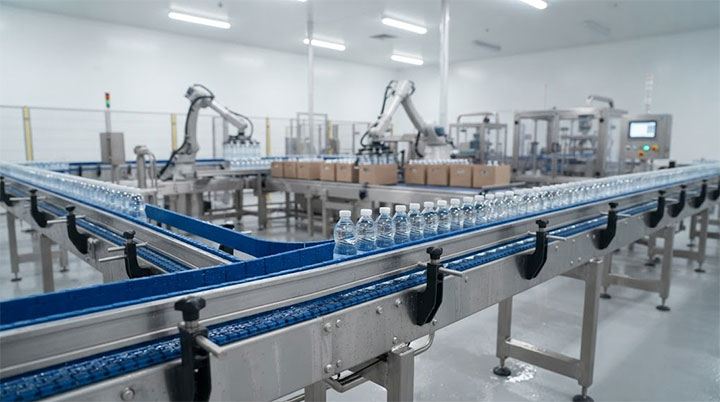

Sanitary modular belt conveyor system transporting bottled water in a modern food and beverage processing plant.

Packaging & Logistics Automation

Designed for secondary packaging, carton handling, and high-speed box sorting, ensuring smooth product transfer through 90-degree and 180-degree turns without jamming.

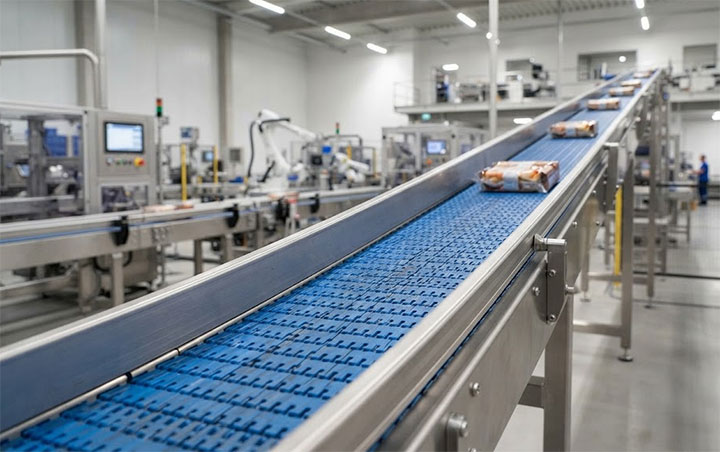

Modular belt conveyor system operating in an automated packaging and logistics production line.

Automotive & Heavy Manufacturing

Utilizing high-strength POM chains and robust stainless steel frames to handle heavy parts, metal components, and assembly line transport under continuous working shifts.

Why Plant Managers Switch to Our Modular Belt Conveyors

Compared to traditional flat belt systems, our modular belt conveyors deliver superior long-term value, lower maintenance costs, and minimized production downtime:

Rapid Localized Repairs

When local wear or damage occurs, operators can punch out a single hinge rod and replace only the affected module in minutes—eliminating the need to scrap and replace an entire belt.

Reduced Maintenance Costs

Positive sprocket drive eliminates tension-related slipping and edge-fraying, significantly extending the service life of both the belt and drive components.

Minimized Production Downtime

Quick-fix modular replacement and easy washdown design reduce routine maintenance windows by up to 50%, keeping your production line running at maximum efficiency.

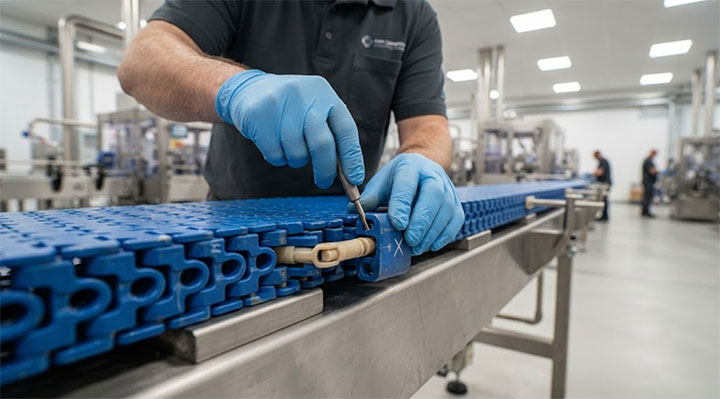

Maintenance technician repairing a blue modular plastic conveyor belt by replacing individual links with a hinge rod.

Frequently Asked Questions (FAQ)

Can a modular belt conveyor handle 90-degree or 180-degree turns?

Yes. Unlike conventional flat belts that require complex transfer plates, specialized radius modular belts can execute tight horizontal turns using a single continuous drive motor.

What is the difference between Flush Grid and Flat Top modular belts?

Flush grid belts feature a perforated open-area design ideal for cooling, draining, or washing applications, whereas flat top belts provide a solid, continuous surface optimal for small packages or items prone to tipping.

How difficult is it to repair a damaged modular belt?

Extremely easy. Because the belt consists of interlocking modules secured by hinge rods, operators can punch out a single rod, replace the damaged module in minutes, and resume production without replacing the entire belt.

What materials are available for the conveyor frame and belt?

Frames are typically built using sanitary-grade 304/316 stainless steel or anodized aluminum. Belt modules are manufactured from high-performance engineering plastics including Polypropylene (PP), Polyethylene (PE), and POM (Acetal).

Engineer Your Custom Modular Conveyor System

Ready to optimize your production line layout? Our engineering team is here to help you design a custom modular belt conveyor system tailored to your exact factory specifications and operational goals.

Our Custom Engineering Process:

Step 1: Share your facility layout, product dimensions, and conveying requirements.
Step 2: Our engineers provide optimized layout suggestions and professional technical drawings.
Step 3: Precision manufacturing and pre-assembly testing prior to shipment.
Step 4: Quick modular installation backed by comprehensive technical support.

Contact us today to request a quote, technical documentation, or customized 3D CAD drawings for your upcoming project.
