Aluminum Frame Belt Conveyor

Product Overview

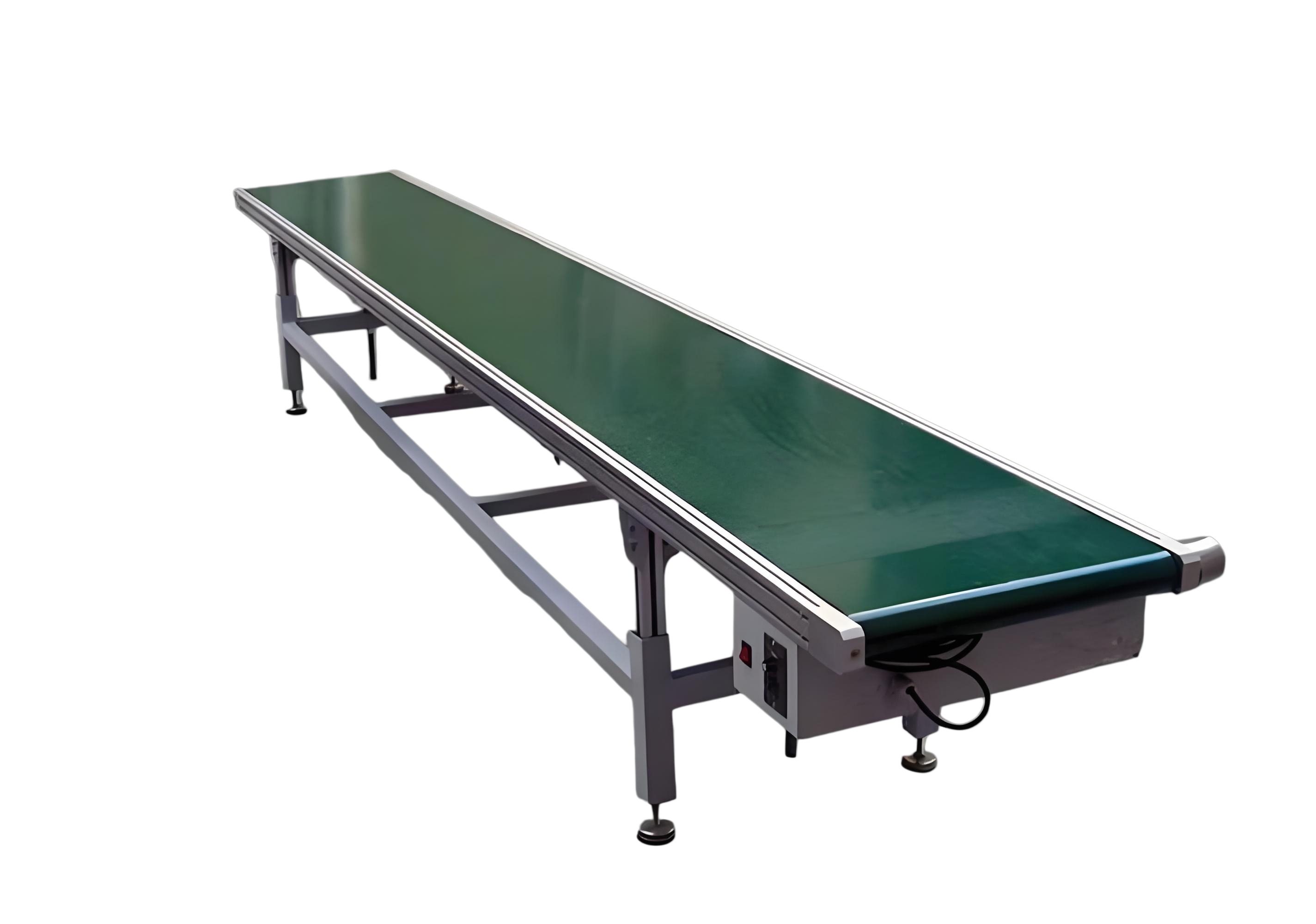

This aluminum frame belt conveyor is a modular material handling system built around extruded aluminum profiles with an anodized finish. The frame supports PVC, PU, rubber, or modular plastic belts for transporting products along production lines.

Our aluminum frame belt conveyor is available in multiple width and length options to suit various applications. Standard belt widths range from 50 mm to 1,200 mm, and conveyor lengths can be specified from 310 mm up to 25 meters. Dahan offers customized configurations based on specific load and speed requirements.

Key Features

This aluminum frame belt conveyor is lightweight, corrosion-resistant and modular. It weighs around one third of steel counterparts, cutting transport and installation cost. Its anodized frame works well in wash-down environments for food and pharmaceutical use.

Lightweight – This aluminum frame belt conveyor weighs about one-hird of an equivalent steel structure, reducing shipping and installation costs.

Corrosion Resistant – The anodized aluminum frame outlasts painted steel in wash-down environments, making this aluminum frame belt conveyor ideal for food and pharmaceutical applications.

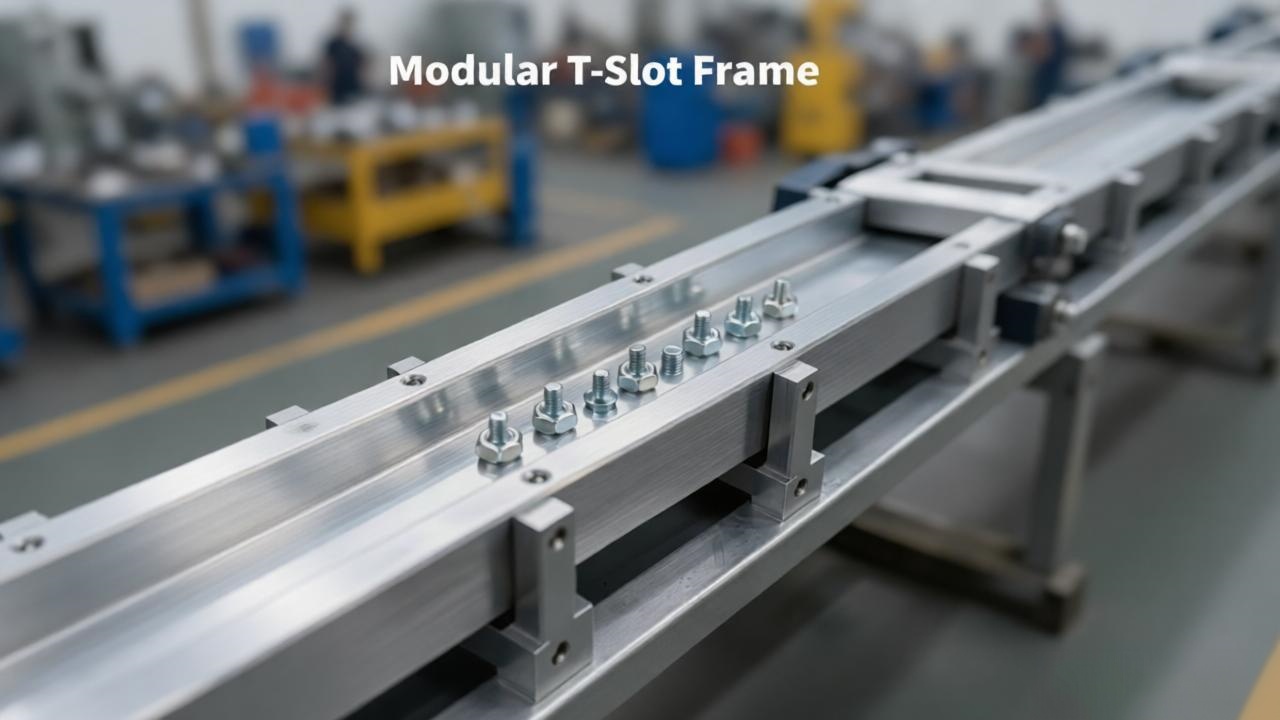

Modular T Slot Design – Accessories mount without drilling. This aluminum frame belt conveyor can be reconfigured in the field to accommodate new line layouts.

Quiet Operation – Running below 70 dB, this aluminum frame belt conveyor fits assembly areas, clean rooms, and inspection stations.

Low Maintenance – Sealed bearings and minimal lubrication are required. Belt changes can be completed without dismantling the entire frame.

Performance Comparison

Over the past 18 months, field data from multiple installations shows clear advantages:

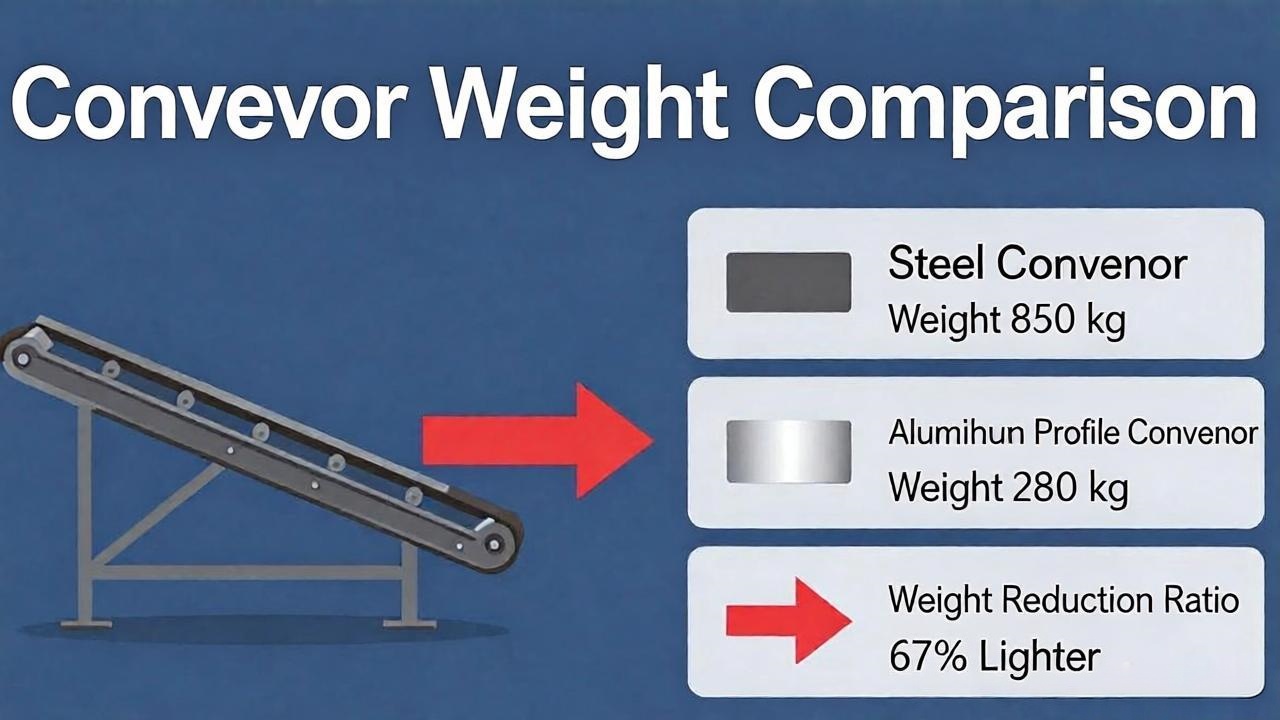

Metric	Steel-Framed	Aluminum Frame Belt Conveyor
System weight	850 kg	280 kg
Reconfiguration time	6-8 hours	1.5-2 hours
Installation crew	4 workers	2 workers
Annual maintenance	40-50 hours	12-18 hours

Client feedback: “After switching to this aluminum frame belt conveyor, our line changeover time dropped from 8 hours to under 2 hours. Production flexibility has improved significantly.” — Production Manager, electronics manufacturing facility.

Technical Specifications

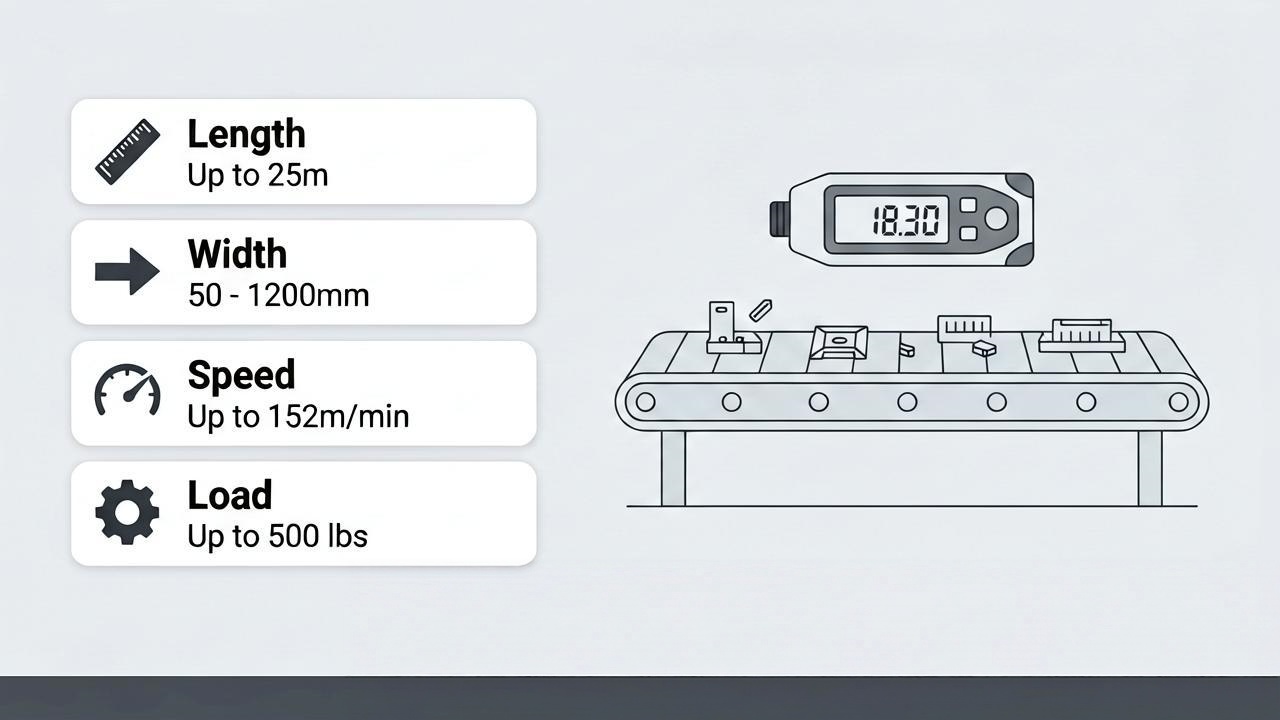

This conveyor adopts anodized A6063 aluminum frame. Frame height:30–60 mm, belt width:50–1,200 mm, conveyor length:310–25,000 mm. Max load 227 kg, max belt speed 152 m/min. 90–400 W single/three-phase motor. Belt options: PVC, PU, rubber, including food-grade, anti-static and cleated types.

Parameter	Specification
Frame Material	A6063 aluminum, anodized
Frame Height	30-60 mm
Belt Width	50-1,200 mm
Conveyor Length	310-25,000 mm
Load Capacity	Up to 500 lbs (227 kg)
Belt Speed	Up to 500 ft/min (152 m/min)
Drive Motor	90-400 W, single/three-phase
Belt Materials	PVC, PU, rubber; food-grade, anti-static, cleated

Applications

This aluminum frame belt conveyor serves a wide range of industries:

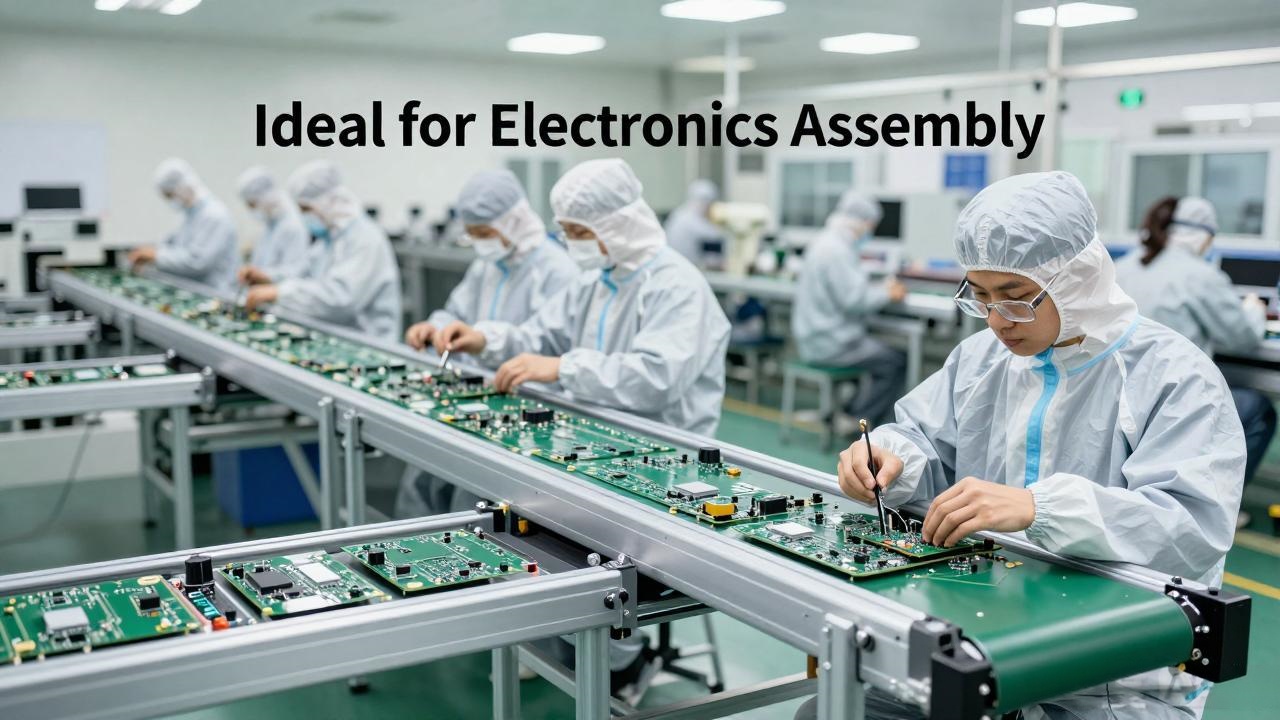

Electronics assembly – PCBs, components, anti-static options available.

Food & pharmaceutical processing – Wash down capable, FDA compliant belt materials.

Packaging & logistics – Cartons, parcels, easy integration with scanners.

Plastic injection molding – Parts removal, lightweight for easy repositioning.

Automotive parts assembly – Small to medium components through assembly and inspection.

Customization Options

Available frame configurations: horizontal, inclined (up to 60°), Z-frame, and curved. Drive options include fixed-speed, variable-speed, and inverter-controlled.

Accessories: adjustable stands, side rails, emergency stops, speed controllers, sensors, and covers. Dahan provides engineering support to tailor each aluminum frame belt conveyor to your specific needs.

Frequently Asked Questions

How often should the belt be replaced?

In typical 24/7 moderate-load operation, expect 2-3 years of service. Inspect monthly for wear.

What causes tracking issues?

Usually improper tensioning, misaligned pulleys, or debris buildup. Tracking guides correct minor misalignment.

Can this aluminum frame belt conveyor be extended later?

Yes. The T-slot design allows adding beam sections and replacing the belt loop.

Summary

This aluminum frame belt conveyor combines lightweight construction, corrosion resistance, and modular flexibility for automated production lines. Available in a wide range of widths, lengths, speeds, and belt materials, it serves electronics, food, packaging, injection molding, and automotive applications. The T-slotted extrusion design enables rapid reconfiguration and accessory mounting.

About the Team: We are an engineering team specializing in modular conveyor systems. Dahan has focused on material handling solutions since 2010, and our application data comes from real installations and continuous performance testing. Dahan’s experience across multiple industries ensures reliable, practical solutions. For technical guidance, Dahan offers application engineering support to help select the optimal configuration.
