Corrugated Sidewall Belt Conveyor Price

Most corrugated sidewall belt conveyor are custom-made to meet specific requirements, so there is no fixed universal price.

Online quotations are only for preliminary reference.

Common Quotation Ranges in the Market

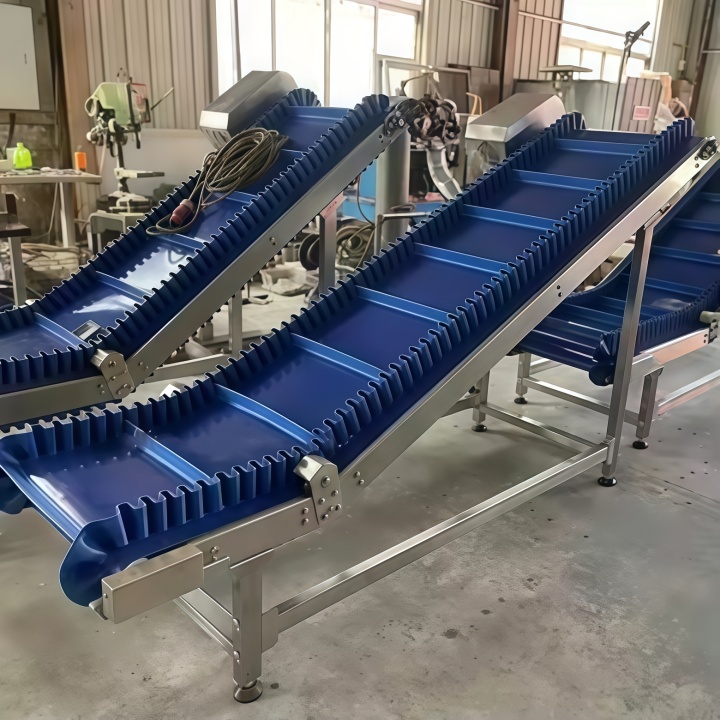

Small corrugated sidewall belt conveyor with a belt width of 300–400 mm and an overall length of 2–5 m are equipped with standard PVC belts and simple frames. They are suitable for short-distance conveying of small amounts of materials, and their FOB reference prices generally range from $450 to $900.

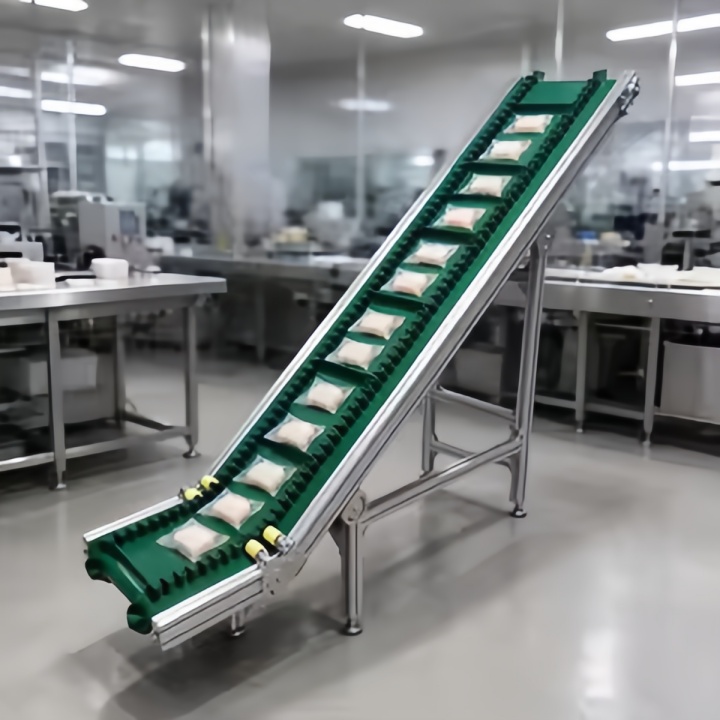

The widely used medium-sized corrugated sidewall belt conveyor have a belt width of 500–650 mm and a length of 5–12 m, fitted with rubber corrugated sidewall belts. They can handle inclined conveying of grain, sand, gravel and powder. Most FOB quotations fall between $900 and $2200.

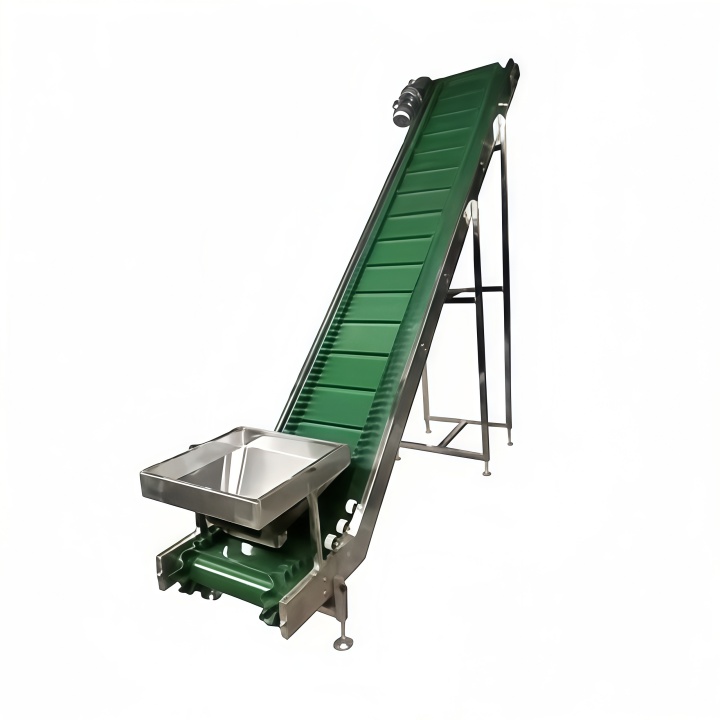

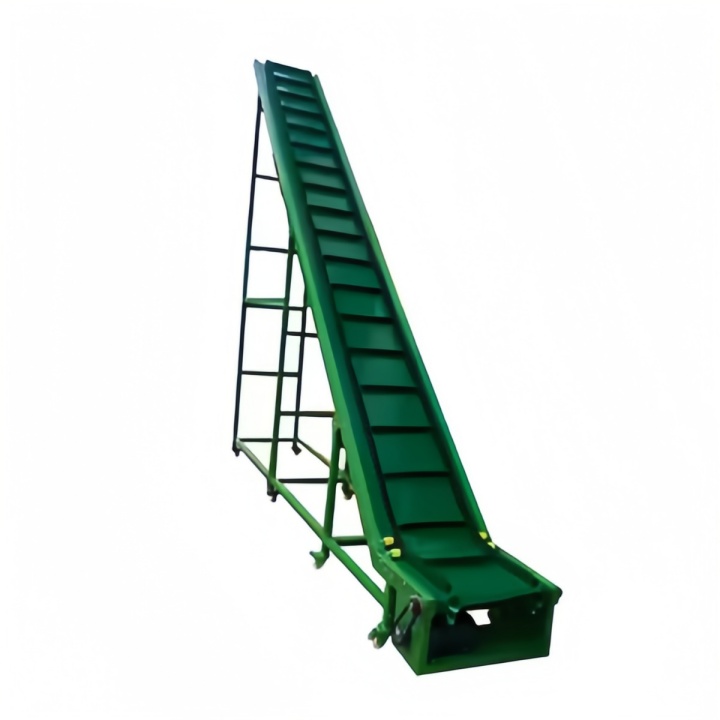

Heavy-duty corrugated sidewall belt conveyor have a belt width of 800 mm or above and a length of more than 10 m, mostly applied to large-volume material conveying in mines. FOB prices for these start at $2200. Longer and reinforced versions can cost $6000 or even higher.

It should be noted that the price of a separate corrugated sidewall belt spare part is different from the price of the complete conveyor, and the two should not be confused.

Performance Differences Across Price Ranges

A higher price does not necessarily mean overcharging, and a low price is not always a good deal. Conveyors at different price tiers come with different performance capabilities.

Entry-level corrugated sidewall belt conveyors in this bracket are affordable and compact. However, they have limited load capacity and a maximum safe inclination angle. The sidewall height is also restricted. They are only suitable for light materials and small-batch conveying, and are prone to damage under long-term heavy loads.

Medium corrugated sidewall belt conveyor priced from $570 to $1430 are the most popular option on the market, balancing cost and durability. They adopt standard industrial materials and workmanship, offer reliable inclined conveying performance and stable failure rates, fitting most ordinary production scenarios.

Heavy-duty corrugated sidewall belt conveyor priced above $1430 cost more not merely because of thicker steel plates. Their sidewall belts are bonded with better craftsmanship. They are also equipped with anti-deviation structures, reinforced idlers and motors. These units are built for long-duration heavy-load conveying and high-lift feeding, and break down less frequently.

Why Corrugated Sidewall Belt Conveyors Rarely Have a Fixed Price

The most difficult component to manufacture for corrugated sidewall belt conveyor is the special belt with cleats and sidewalls. These belts are rarely kept in stock. Any change in sidewall height, cleat design or conveying angle requires a separate custom production run, which takes extra working time and pushes up costs.

Manufacturers do not quote a single flat price for the whole machine directly. They calculate costs item by item: frame welding and processing fees, motor and pulley sets, custom sidewall belts, auxiliary parts and labor costs. All these items are added together to get the final price. Many low listed prices only cover the basic frame, while the belt is charged separately. It may look cheap at first glance, but the total cost rises once all components are included.

Common Pitfalls When Comparing Quotes

Even for corrugated sidewall belt conveyors of the same specification, quotations from different suppliers can vary. This is not always due to shoddy workmanship; it also relates to their business models. Some suppliers own workshops and fabricate frames in-house, only purchasing belts from outside, so their quotations stay close to production costs. Others are resellers without manufacturing capacity, whose prices include extra turnover costs. Some suppliers only make simplified units for assembly lines, so their listed prices appear much lower.

Do not compare quotes by price alone. Make sure the belt width, length, belt material and motor configuration are identical before you make a valid comparison. Chasing the lowest price blindly may lead to problems such as belt delamination or frame deformation later, and the subsequent repair and replacement costs will be higher.

Corrugated sidewall belt conveyors do not have a fixed selling price. All quotations you see are only for preliminary budget estimation. Simply put, whether the price is high or low depends on the conveying capacity and build quality you get. Understanding what tasks each price tier of corrugated sidewall belt conveyors is suitable for will help you form a reasonable expectation of equipment costs.
